Detailed Product Description

Features :

The Thread rolling Machine is used for rolling External Thread on Steel Pipe, bars, rod, Bolt, scaffolding pipe etc. By thread roll method. BSP, BSPT, NPT, UNF,UNC, BSW,Metric, Acme Threads can be roll on this machine depending upon the type of thread roll.

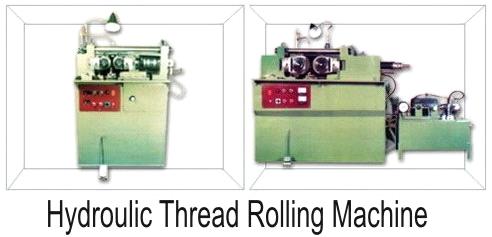

Thread Rolling Machine

We are one of the highly preferred rolling machine manufacturers in India. This thread rolling machine is a result of standardized workmanship, excellent quality raw materials and advanced technology. Automatic thread rolling machine manufactured by us are user friendly and needs least maintenance. This thread rolling machine is designed in a way to give maximum efficiency and reliable performance. They are made out of super quality raw materials, which make them highly resistant to corrosion, abrasion and shatter.

Specification



NCT - 25NCT - 40NCT - 50NCT - 80NCT - 100NCT - 120
Max. Pitch Can be Rolled (in mm)2.52.5455.58
Max. Dia can be Rolled in feed (in mm)25405080100125
Max. Dia can be Through feed (in mm)181835405070
Max. Rolling Length in feed (in mm)80100150150150150
Max. Rolling Length Through feedIndefiniteIndefiniteIndefiniteIndefiniteIndefiniteIndefinite
Max. Outer Dia Thread Rolls (in mm)120180180180200220
Spindle Dia (Bore Dia) (in mm)40545469.8569.8569.85
Max. Width Thread Rolls (in mm)80100140150150150
Max. Rolling Force8 Tons12 Tons15 Tons24 Tons30 Tons40 Tons
Power for Roll Spindles3 H.P.
1440 RPM		5 H.P.
1440 RPM		7.5 H.P.
1440 RPM		10 H.P.
1440 RPM		12.45 H.P.
1440 RPM		250 H.P.
1440 RPM
Power for Hydraulic Pump2 H.P. / 3
H.P.
960 / 1440 RPM		2 H.P. / 3
H.P.
960 / 1440 RPM		5 H.P.
960 / 1440 RPM		5 H.P./7.5
H.P.
960 / 1440 RPM		5 H.P./7.5
H.P.
960 / 1440 RPM		7.5 H.P.
960 / 1440 RPM
Power for coolant pump0.1 H.P.
3000 RPM		0.1 H.P.
3000 RPM		0.1 H.P.
3000 RPM		0.1 H.P.
3000 RPM		0.1 H.P.
3000 RPM		0.1 H.P.
3000 RPM
Place of Origin:Ludhiana in India
Model No:58
Brand Name:NCT
FOB Price:5500-16500 USD I C T Ludhiana
Payment Terms:L/C,T/T(Bank Transfer),
Supply Ability:Pair|1|Week
