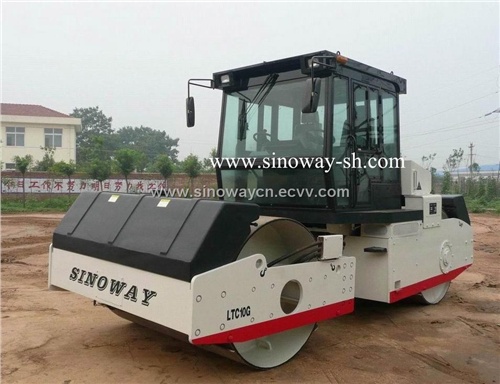

Sinoway Tandem Vibratory Roller (LTC10G/LTC12G)

Model: LTC10G
Operation weight: 10000kg
Front axle load: 4500kg
Rear axle load: 5500kg
Front linear load: 265N/cm
Rear linear load: 323N/cm
Travel speed:
1st gear: 2.5km/h
2nd gear: 5.5km/h
Gradeability: 25%
Turing radius: 6000mm
Steering angle: 30 degree
Vertical ascillation: 8 degree
Vibration amplitude: 0.35mm
Vibration frequescy: 50Hz
Centrifugal force: 70Kn
Drum width(front): 1700mm
Drum dianeter(Front): 1260mm
Drum width(rear): 1700mm
Drum diameter(rear): 1320mm
Wheel base: 2950mm
Ground clearance: 310mm
Diesel: Cummins 4BT3.9
Rated output: 60kw/2000rpm
Fuel tank: 130L
Electrical: 24V
Overall dimension: 4950x2030x2980mm

Place of Origin:	Shanghai in China
Model No:	LTC10G/LTC12G
Brand Name:	Sinoway
Payment Terms:	L/C,T/T(Bank Transfer),
