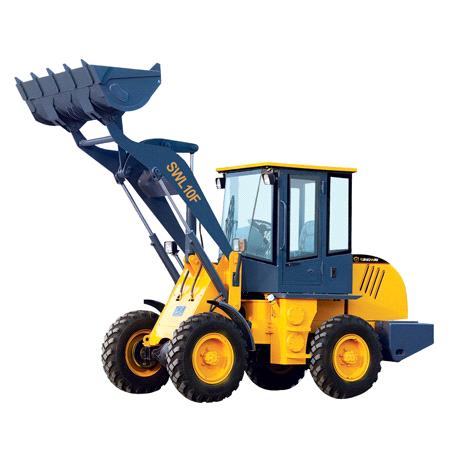

Mini Wheel Loader (SWL10F )
Loading specification
Rated load
1000kg
Rated bucket capacity
0.6M3
Max. Breakout force
32KN
Dumping clearance
2300mm
Dumping reach
945mm
Engine Specification
Model
YC2108G
Type
In-line, 2ylinder, water cooling; direct injection diesel engine
Power
33Kw
Rated speed
2400rpm
Traveling specification
Traveling speed: F1;F2;R1;R2
4km/h; 17km/h; 4km/h; 17km/h
Grade-ability
25°
Turning radius
4250mm
Dimension specification
Overall size (L x W x H)
5080mm x 1650mm x 2680mm
Wheel base
1900mm
Tread
1350mm
Tire specification
Tyre size
9.75-18
Mass specification
Operating weight
4000kg
