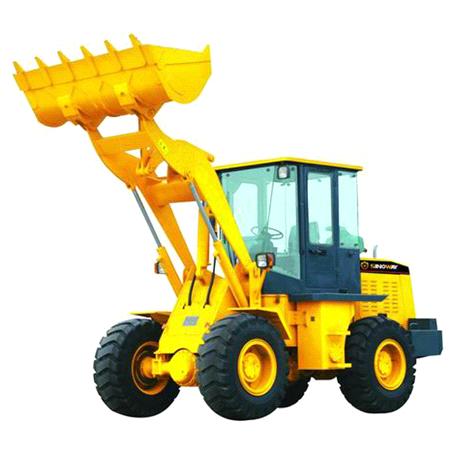

Sinoway Mini Loader (SWL18F)

Loading specification

Rated load

1800 kg

Rated bucket capacity

1.1 m3

Max. breakout force

50 KN

Dumping clearance

2700 mm

Dumping reach

850 mm

Lifting time

Lowering time

Dump angle at any position

Engine Specification

Model

LR4105

Type

In-line, 4ylinder, water cooling; direct injection diesel engine

Power

60 KW

Rated speed

2400 rpm

Max. torque

Oil consumption

Traveling specification

Traveling speed: F1;F2;R1;R2

6 km/h; 24 km/h; 6 km/h; 24 km/h

Grade-ability

25°

Turning radius

4830 mm

Ground clearance

Dimension specification

Overall size (L x W x H)

5520 mm x 1960 mm x 2850 mm

Wheel base

2200 mm

Tread

1490 mm

Tire specification

Tyre size

16/70-20

Mass specification

Operating weight

5600 kg
