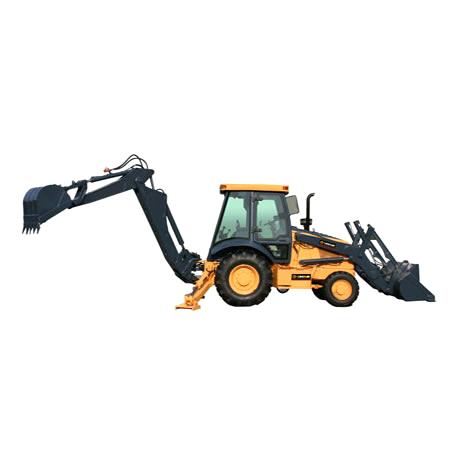

Backhoe Loader ( SWB30-25F (4 x 4) )

Overall Dimension

Length(with bucket on ground)

7077mm

Width

2313mm

Load Bucket width

2328mm

Height(To the top of the cab)

2720mm

Height(To the top of the digging pole)

3424mm

Wheelbase

2155.5mm

Back wheel Tread

1557mm

Fore wheel Tread

1714mm

Min. ground clearance

275mm

Main Loading Technical Specification

Rated load

1700kg

Operating weight

7000kg

Max lifting capability

>2500kg

Rated load bucket capacity

1.0m3

Max. load breakout force

>40kN

Max. dump clearance

2611mm

Dump reach

726mm

Dump angle at any position

≥43.5°

Min. turning radius

Outside of bucket

5670mm

Center of front wheel

4300mm

Lifting time of loading bucket

≤5.1sec.

Lowering time of loading bucket

≤5.9sec.

Dumping time

≤0.9sec.

Traveling speed(4 forward and 4 reverse)

Ⅰ gear forward

5.8km/h

Ⅱ gear forward

10.5km/h

Ⅲ gear forward

20.1km/h

Ⅳ gear forward

40.2km/h

Ⅰ gear reverse

7.0km/h

Ⅱ gear reverse

12.6km/h

Ⅲ gear reverse

24.3km/h

Ⅳ gear reverse

48.6km/h

Main Digging Technical Specification

Rated digging bucket capacity

0.3m3

Max. digging depth

4338mm

Max. digging force

>50 10％kN

Max. digging radius

5481mm

Max. dumping height

3737mm

Diesel engine

Model

WD Deutz TZ226B

Type

Direct injection,Turbocharged,Water cooled

Rated output

70kW

Total exhaust of cylinder

3.92L

Inter-bore of cylinder/stroke

102/120mm

Voltage of starting motor

12V

Rated speed

2200rpm

Max. Torque

360N.M

Starting type

Electric

Min. specific fuel consumption

216g/Kw.h

Transmission System

Torque Converter

Model

CARRARO

Cooling type

Pressure oil circulating

Transmission case

Model

CARRARO

Type

Synchromesh mechanical shift

Gear shift position

4 Forward and 4 reverse gears

Axle and Tire

Model

CARRARO

Type of main reducer

spiral bevel gear, single stage

Type of final reducer

Single stage planetary

Max. steering angle

55°

Tire type

front tire12-16.5NHS-10PR
Rear tie 19.5L-24R4-12PR

Working Device Hydraulic System

Model of oil pump

JHP2050AXCC

System pressure

215kgf/cm2

Model of load valve

ZL20DC-02

Model of excavate valve

ZL30DC-07

Steering System

Type

Front wheel Steering

Model of steering pump

JHP2050AXCC

Model of redirector

BZZ5-E160B FKB-3022

Model of priority valve

YXL-F160L-N7

System pressure

140kgf/cm2

Oil Capacity

Fuel(diesel)

151L

Engine lubricating oil

11L

Oil for converter and gear box

21L

Oil for hydraulic system

110L

Oil for driving axles(F/R)

8/17L
