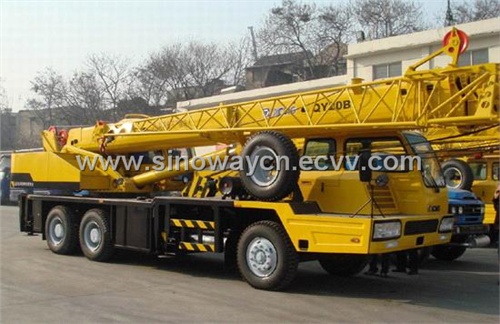

- Model : QY20B
- Dead weight in travel state: 26. 02ton
- Front axle load : 6900kg
- Rear axle load : 19120kg
- Engine: Shanghai diesel Euro II engine
- Rated power : 184kw/2200rpm
- Mx. Travel speed : 72km/h
- Min. Turning diameter : 20000mm
- Min. Ground clearance: 270mm
- Approach angle: 21°
- Departure angle: 11°
- Brake distance(at 30km/h): 9500mm
- Max. Grade ability: 35%
- Fuel consumption of 100km: ~35L
- Hydraulic system: Rexroth
- Max. Rated lifting load: 20ton
- Min. Rated working radius: 3000mm
- Turning radius at swing table tail : 3380mm
- Max. Load moment
- Base boom: 833Kn. M
- Full-extend boom: 458. 6Kn. M
- Outtrigger extension distance
- Longitudinal/Lateral: 4970/5400mm
- Lifting height
- Base boom: 10. 2m
- Full-extend boom: 31. 7m
- Full-extend boom + jib: 39. 9m
- Boom raising time: 75s
- Boom telescoping time
- Full-extending: 95s
- Max. Slewing speed: 3r/min
- Outtrigger telescoping time
- Outrigger beam extending/retracting synchronously: 35/30s
- Outrigger jack extending/retracting synchronously: 30/30s
- Hoisting speed(single rope)
- Main winch with full load/no load: 40/90m/min
- Auxiliary winch with full load/no load : 30/60m/min
- Telescopic boom : 4-section 12-chord telescopic boom
- Overall dimensions : 12000x2500x3300mm
| Place of Origin: | Shanghai in China |
| Model No: | QY20B |
| Payment Terms: | L/C,T/T(Bank Transfer), |
