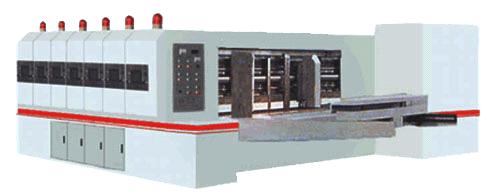

Flexo Printing Slotting Die-cutting Machine

Detailed Product Description

Feeder unit:
1. Independent development design lead edge feed system, suitable for all kinds of cartons, fast and precise.
2. Automatically clean the dust to improve the printing quality.
3. Side-jogger adjusted by computer.
4. Continue or skip feed with feed counter.
5. Rear line automatically adjusted by computer.
6. Motorized unit open and close, audible alarm while moving to ensure safety.
7. Pneumatic lock all units operation, main motor is inter- locked.
8. Automatic zero setting.
9. Touch screen, accept 8000 orders one time. Fast and easy.

Printing unit:
1. Printer roller, grinded surface, cover chrome. Automatically balancing. Smooth running.
2. Computerized control printing and ink thickness, adjust roller, printing pressure and the gap. fast, convenient, and precise.
3. The printing register touch the computer adjustment.
4. Precisely planet-geared circumference adjust device. Latest top quality transmission gap setting.
5. The machine also allows for auto ink washing which improves ink recollection.
6. Lack the electronics of pink responds the system.
7. Brake for the electromagnetic clutch is used when the unit is opened.
8. The net wears the pink device automatically.

Slotter unit:
1. Prepare to press the transmission, prevent the not easy crushed in carton.
2. A type fixs the side knife, the edge of knife is sharp, the sophistication is high.
3. The planet type wheel gear adjust register with height of carton box.
4. The Slotting register and height of the carton box are touch the computer adjustment.
5. Creasing roll and slotting boss transverse movement the position computer adjusts.
6. Central knife computer control.
7. The knife Cape is soft to slice the system.
8. A knife a stalk system.

Die-cut unit
1. Gum roller auto horizontal move to compensate the device.
2. The computer adjustment mold slices the knife roller cleft.
3. The mold slices the or so swing in gum system with differ to compensate the device soon, guaranteeing the knife mold size constant, prolong the service life significantly.
4. Import to do not need the lock type to change the gum mat quickly, bear to wear, install the convenience.
5. The die-cutting register a touch holds the computer adjustment.
6. The computer adjustment mold slices the knife roller register

Stacker unit
1. The transfer belt at the connection arm can be adjusted tension individually.
2. Strong chain and motor with brake control the transport bed.
3. Connecting the paper terrace has to defend to fall to the device, insuring to operate the personnel the safety.
4. All actions be controlled by computer.
5. Two types connects the paper system automatically, insuring the carton can't leave out.
6. Kitchen chopping board automatic input and a code automatic exportation function.
7. Transporting the leather belt adoption imports to defend to row the leather belt.
