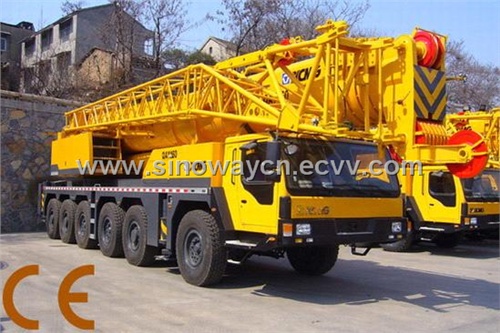

All Terrain Crane (QAY160)

Detailed Product Description

Classificatory	Item				Unit	Parameter
Dimension	Overall length				Mm	15900
	Overall width				Mm	3000
	Overall height				Mm	4000
	Wheel base	Axle 1, Axle 2			Mm	2750
		Axle 2,Axle 3,Axle 4,Axle 5, Axle 6			Mm	1650
		Axle 3, axle 4			Mm	2000
	Track				Mm	2590
Mass	Total mass in travel state				Kg	70900
	Axle load	Axle 1, Axle 2			Kg	11635
		Axle 3, Axle 4			Kg	11815
		Axle 5, Axle 6			Kg	12000
Power	Crane superstructure engine	Rated power			KW/(r/min)	162/2100
		Rated torque			N.M/(r/min)	854/1400
		Rated speed			R/min	2100
	Crane carrier engine	Rated power			KW/(r/min)	380/1800
		Rated torque			N.M/(r/min)	2400/1200
		Rated speed			R/min	2000
Travel performance	Travel speed	Max. Travel speed			Km/h	71
		Min. Stable travel speed			Km/h	2.1
	Min. Turning diameter				M	24
	Min. Ground clearance				Mm	278
	Approach angle				°	25
	Departure angle				°	20
	Braking distance (at 30km/h with full load)				M	≤ 10
	Max. Grade-ability				%	48
	Fuel consumption for 100km				L	80
Main performance	Max. Total rated lifting capacity				T	160
	Min. Rated working radius				M	3
	Turning radius at turntable tail				Mm	4850
	Max. Load moment	Base boom			KN.M	5282
		Fully extended boom			KN.M	2140
	Outrigger span	Longitudinal			M	9.625
		Lateral			M	8.7（6.5）
	Lifting height	Base boom			M	14.3
		Fully extended boom			M	56.3
		Fully extended boom + Jib			M	79
	Boom length	Base boom			M	13.6
		Fully extended boom			M	60
		Fully extended boom + Jib			M	80
	Jib offset				°	0,15,30
Working speed	Boom elevating time		Boom raising		S	90
	Boom telescoping time		Boom full extension		S	600
			Boom full retraction		S	600
	Max. Swing speed				R/min	2
	Hoist speed (single rope at 4th layer)		Main winch	No load	M/min	120
			Aux. Winch	No load	M/min	110
	Crane exterior noise				Db（A）	≤118
	At seated position				Db（A）	≤90
