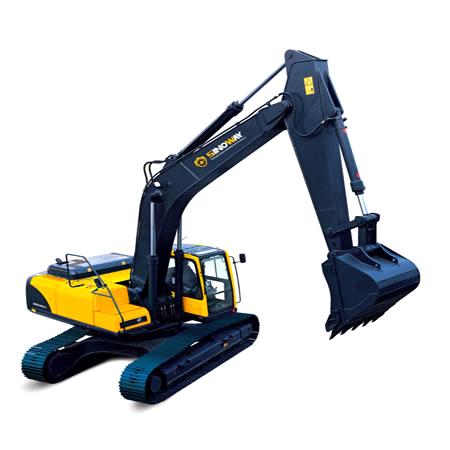

Sinoway Excavator (SWE300LC)

Weight

Operating Weight

30800 kg

Bucket Capacity

Standard Bucket Capacity

1.38 m3

Range of Bucket Capacity

.

Engine

Diesel Engine Manufacturer

Cummins

Engine Model

C8.3-C

Engine Power

205 KW

Hydraulic System

Hydraulic Flow Rate

2*260 L/min

Hydraulic Pressure

34 MPa

Traveling Parameter

Traveling Speed

3-5 km/h

Grade Climbing Capacity

65%

Slewing Speed

11 r/min

Digging Force

Stick Digging Force

105 KN

Bucket Digging Force

155.9 KN

Main Dimension

Overall Length

10610 mm

Overall Width

3180 mm

Overall Height of Boom

3540 mm

Overall Height of Cab

3010 mm

Engine Cover Height

2650 mm

Counterweight Clearance

1235 mm

Ground Clearance

470 mm

Upper structure Width

2960 mm

Rear-End Length/Swing Radius

3215 mm

Overall Track Length

4690 mm

Track Length on ground

3780 mm

Gauge Width

2580 mm

Track Width

600 mm

Ground Pressure

0.06 Mpa

Boom Slew Angel(right/left)

Operating scope

Stick Length

3200 mm

Maximum Cutting Height

10165 mm

Maximum Dumping Height

7350 mm

Maximum Digging Depth

7585 mm

Maximum Reach

10950 mm
