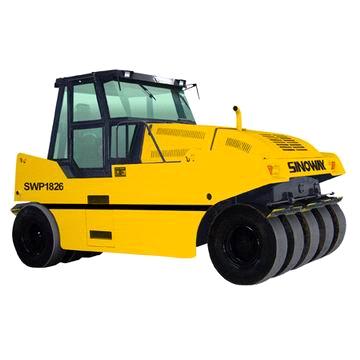

Pneumatic Tire Roller ( SWP1826 )

Detailed Product Description

Engine
Model	6BTA5. 9
Power rate	125KW
Rated speed	2000rpm
Type	Vertical, water cooling, four stroke, direct injection
Rated fuel consumption	200g/kw·h
Traveling performance
Forward II	3. 5 (SWP1016H; 0-6)
Forward II	7. 8 (SWP1016H; 0-14)
Forward III	13. 2
Forward IV	20. 75
Reverse I	3. 5
Reverse II	7. 8
Grade ability	20%
Traveling speed (km/h)
Axle and tire
Type of main reducer	Spiral bevel gea
Gear Ratio	1: 6. 17
Final reducer	Chain driven
Chain gear Ratio	1: 2. 17
Single tire load (F)	1560 kg
Front axle load (R)	1560kg
Tire number(F R)	5 6
Tire size	11. 00-20-16
Working data
Max. operation weight	26000 kg
Min. operation weight	18000kg
Average ground pressure	150-300 Kpa
Tyre pressure	200-800 Kpa
Roller width	2790 mm
Vertical oscillation	±100 mm
Brake system
Service brake	Air-over-hydraulic disc brake (Hydraulic brake for SWP1016H)
Parking brake	Hand operated drum brake(Oil cut off brake for SWP1016H)
Steering system
type	hydraulic steering
Steering cylinder	Φ90×50×260 mm
Working pressure	13MPa
Min. steering radius	8000mm ( outer side)
Refill capacity
Hydrauclic tank	67L
Gear box	10L
Fuel tank	220L
Engine crank case	16L
Dimensions
Tyre specification	11. 00-20-16
Overall length	4878mm
Overall width	2800mm
Overall height	3103mm
Wheel base	3800mm
Min. ground clearance	300mm
