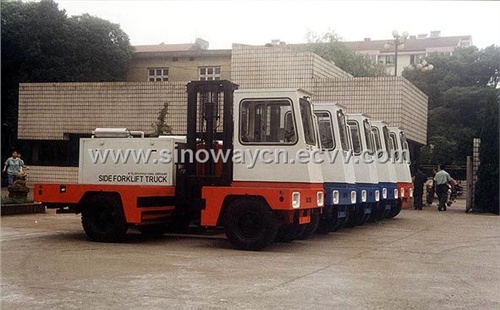

Sinoway Side Forklift Truck (3T-10T)

Prev Product

Detailed Product Description

POWER TRANSMISSION TYPE		MECHANICAL					HYDRAULICAL
		CCC3A	CCC3C	CCC4C	CCC5(A)	CCC6(A)	CCCD10
MODEL
		M3A	M3C	M4C	M5	M60	M10
CODE NAME
		3000/600	3000/600	4000/600	5000/600	6000/600	10000/760
Max.lift capacity/CG of cargo (Kg/mm)
		3500	3500	2000	3550	3550	3600
Max.lift height (mm)
		≥0.35	≥0.35	≥0.35	≥0.3	≥0.25	≥0.25
Max.lift speed (laden) (m/s)
		24.8	24.8	24.8	22	22	24
Max.traveling speed (laden) (Km/h)
		5月3日	5月3日	5月3日	5月3日	5月3日	5月3日
Fork tilt angle (up/down) (^o)
		4300	4300	4300	4350	4350	5800
Min.tuming radius (mm)
		≥22	≥22	≥22	≥20	≥18	≥20
Gradeability (laden) (%)
		170	170	170	180	180	220
Min.ground clearance (laden) (mm)
		920	920	920	990	990	1340
Platform height (mm)
		1150	1150	1150	1220	1220	1760
Platform width (mm)
		1150	1150	1150	1200	1200	1650
Fork length (mm)
		940	940	940	1012	1012	1310
Max.fork spacing (mm)
		2460	2460	2460	2600	2600	3700
Axle spacing (mm)
		1600	1600	1600	1715	1715	2200/2110
Wheel spacing (F/B) (mm)
		4420	4420	4420	4511	4511	6200
Overall dimension (LWH) (mm)			2035	2035	2065	2065	2600
		2035
			2700	2050	2800	2800	3450
		2700
		5300	5300	5500	7500	7500	15000
Weight unladen (Kg)
	Model	JD4G5	JD4G5	JD4G5	R4105G₂₂	R4105G₂₂	LR6105
Enging		48/2300	48/2300	48/2300	58.8/2400	58.8/2400	77.2/2200
	Kw/rpm
		223/1600	223/1600	223/1600	270/1680	270/1680	372/1400
	N.m/rpm
