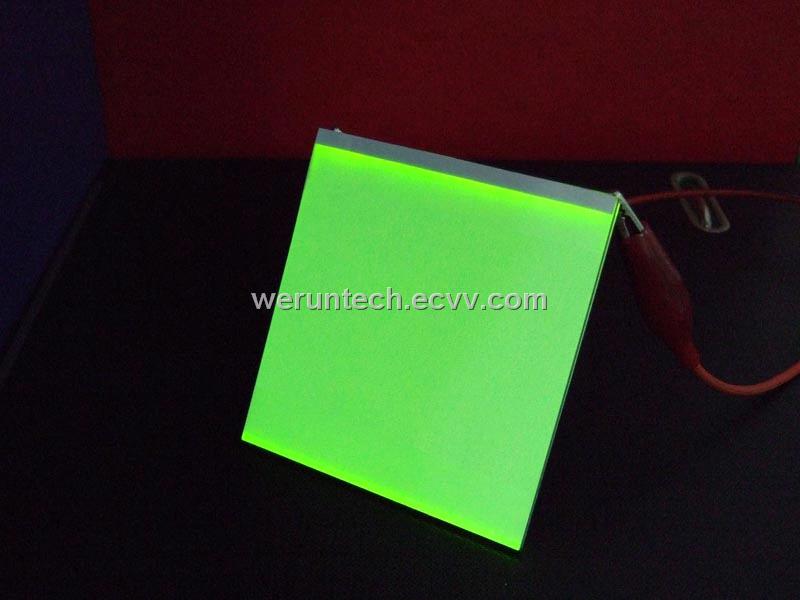

Side Backlight

Detailed Product Description

Standard NO	Outline Dimensions			Viewing Area		Voltage （Vf）	Brightness Ref （cd/m²）	Wavelength	Color
Standard NO	Lenght	Width	Hith	Length	Width	Voltage （Vf）	Brightness Ref （cd/m²）	Wavelength	Color
WRS-6919B	77	19	3/4.4	69	19	3.3	70	473	Blue
WRS-6919Y	77	19	3/4.4	69	19	3.3	70	593	Yellow
WRS-6618Y	71	18.5	3	66	18.5	3.3	80	593	Yellow
WRS-6618W	71	18.5	3	66	18.5	3.3	80		White
WRS-3624B	36	24	1.2	36.3	24	3.3	120	470	Blue
WRS-3524B	38.4	24	1.3	35.9	24	3.3	100	470	Blue
WRS-8431W	95	33.4	3.5	84	31.4	6.7	100		White
WRS-6419YG	70	17	1.6	64.5	19	4.2	80	570	Yellow Green
WRS-3618B	41	21.7	3.25	36	18.7	3.3	120	470	Blue
WRS-4343YG	43.5	46.5	3.2	43.5	43	4.2	60	568	Yellow Green
WRS-6328B	73.2	28.5	2.9	63.5	28.5	3.3	70	470	Blue
WRS-7618YG	79	21.5	3	76	18.5	4.2	60	570	Yellow Green
WRS-6933G	82	33	11.2	69	33	3.3	70	525	Pure Green
WRS-3941B	43	41.3	1.5	39	41.3	3.3	60	470	Blue
WRS-6546W	71.5	46	3.4	65.5	46	3.3	70		White
WRS-8054B	92.8	64	12	80	54	3.3	120	470	Blue
WRS-5938YG	65	42	13	59	38	4.2	70	570	Yellow Green
WRS-7340G	83.2	40.1	1.6	73.6	40.1	3.3	50	525	Pure Green
WRS-8736B	93	36.5	3.4	87	36.5	3.3	60	470	Blue
WRS-9127B	98	27.3	1.6	91.5	27.3	3.3	50	470	Blue
WRS-5352B	66	52	3.4	53	52	3.3	80	470	Blue
WRS-3036YG	35.5	36	2.7	30	36	4.2	70	570	Yellow Green
WRS-3116B	34	16.5	1.8	31	16.5	3.3	60	470	Blue
WRS-3122B	36	22.4	1.8	31	22.4	3.3	70	470	Blue
WRS-3122G	36	22.4	1.8	31	22.4	3.3	50	595	Green
WRS-6527B	70	27	1.8	65.1	27	3.3	70	470	Blue
WRS-8144W	91.5	44	3.4	81.5	44	3.3	85		White
WRS-7317B	82.5	17	3.4	73.5	17	3.3	70	470	Blue
WRS-7072YG	76	72.1	3.4	70	72.1	4.2	90	570	Yellow Green
WRS-6618B	71	18.5	3.4	66	18.5	3.3	70	470	Blue
WRS-6618G	71	18.5	3.4	66	18.5	3.3	70	595	Green
WRS-6540B	75.5	40	3.4	65	40	3.3	80	470	Blue
WRS-2928B	33.3	33.5	2.7	29	28	3.3	90	470	Blue
WRS-3220G	38	20	2.6/1.6	32	20	3.3	70	525	Pure Green
WRS-5331W	62	33	7.4	53	31	3.3	80		White
WRS-8140B	91	42	9.5	81	40	12	120	470	Blue
WRS-6633G	73	33	11	66.3	33	3.3	90	525	Pure Green
WRS-6418YG	70	18	2.4	64.5	18	4.2	60	570	Yellow Green
WRS-2722B	33	24	2.1	27	22	3.3	60	470	Blue
WRS-2722Y	33	24	2.1	27	22	2.1	50	600	Yellow
WRS-3709B	43	9	3.4	37	9	3.3	70	470	Blue
WRS-12633W	132.7	33	12.7	126	33	6.4	110		White
WRS-10731W	113.7	31	12.7	107	31	6.4	110		White
WRS-13314B	147	14	3.4	133	14	3.3	70	470	Blue
WRS-8525B	94.5	25	15	85	25	3.3	70	470	Blue
WRS-8122B	93.5	22	3.4	81.5	22	3.3	80	470	Blue
WRS-8232B	97	32	11.3	82	32	3.3	80	470	Blue
WRS-7134B	78	34	3.4	71.5	34	5	90	470	Blue
WRS-8138W	89	38.5	3.4	81	38.5	3.3	80		White
WRS-16240W	178.2	40.6	3.4	162.2	40.6	3.3	110		White
WRF-2317YG	26	21.6	5.5	23	17.8	4.1	120	570	Yellow Green
WRF-2317A	26	21.6	5.5	23	17.8	4.0	120	590	Amber
WRF-3736W	39.5	38	8.8	37.5	36	12	250		White
WRF-4944YG	53.8	48.7	6.0	49.8	44.7	4.2	130	570	Yellow Green
WRF-6441YG	67	44	4.8	64	41	4.2	110	570	Yellow Green
WRF-4017YG	50.5	19.8	4.8	40	17	4.2	80	568	Yellow Green
WRF-3114YG	33.4	16	5.3	31.4	14	4.2	80	570	Yellow Green
WRF-4514YG	50	16.2	4.8	45.5	14.2	4.2	80	568	Yellow Green
WRF-3333B	36	36	5	33	33	6.7	160	473	Blue
WRF-6446YG	68	50	5.7	64	46	4.2	200	568	Yellow Green
WRF-4313YG	46	16	5	43	13.5	4.2	70	570	Yellow Green
WRF-6624YG	77	27	6.5	66	24	4.2	120	568	Yellow Green
WRF-5516YG	58	19	4.5	55	16	4.2	130	568	Yellow Green
WRF-6314YG	65	17	5.4	63.2	14	4.2	120	570	Yellow Green
WRF-8635B	89.8	37	8.7	86.8	35	10	200	470	Blue
WRF-6128YG	64.5	30	4.8	61.5	28	4.2	150	570	Yellow Green
WRF-6516YG	67.8	18.6	4.7	65.8	16.6	4.2	160	568	Yellow Green
WRF-9039B	93	42	6	90	39	6.7	120	473	Blue
WRF-5537YG	58	40	4.1	55	37	4.2	150	570	Yellow Green
WRF-7014YG	74	18.2	4.5	70	14	2.1	120	568	Yellow Green
WRF-7014HYG	74	18.2	4.5	70	14	4.2	150	568	Yellow Green
WRF-6929YG	70.8	33.3	4.7	66.9	29.4	10	180	568	Yellow Green
WRF-6727YG	70	30	5.5	67.5	27.5	4.2	150	568	Yellow Green
WRF-6733YG	71	37.5	4.6	67.2	33.5	4.2	160	570	Yellow Green
WRF-6235YG	65	38	4.8	62	35	4.2	150	570	Yellow Green
WRF-7504YG	77.8	44.6	5	75	4.2	4.2	170	570	Yellow Green
WRF-6615YG	69	18.2	5	66	15	4.2	160	570	Yellow Green
WRF-6416YG	68	20	4.6	64	16	4.2	140	568	Yellow Green
