SCISSOR LIFT

Detailed Product Description

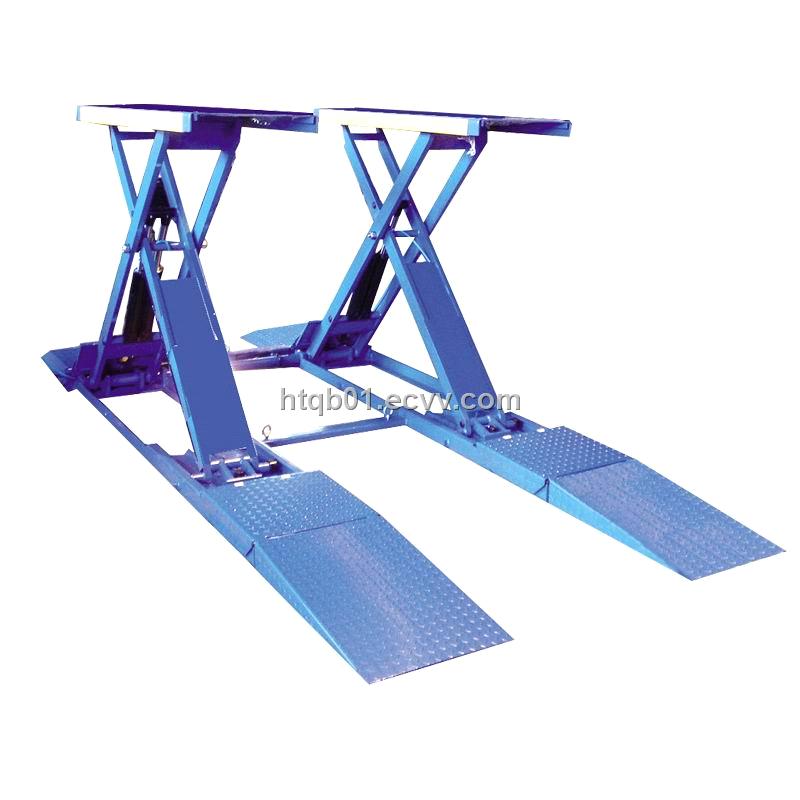

SDY-3000A SCISSOR LIFT

FEATURES:

Due to its ultra low main structure (110mm) construction, it permits vehicle to pass in and out conveniently. Front and rear ramps are installed for the convenience of vehicle entry from either direction.

It is extremely simple to operate the lift with safety locking device being constructed to stop the lift from descending further when electricity supply is being cut-off suddenly.

Lifting Capacity 3000kg

Lifting Height 1650mm

Lifting Time 50-60s

External Dimensions 4060*1900*1650mm

Power Supply 380v/220v

Net Weight 950kg

Packing dimension 2600*2000*240mm / 700*550*500mm / 380*340*900mm

SDY-3000B SCISSOR LIFT

Due to its ultra low main structure (135mm) construction, it permits vehicle to pass in and out conveniently. Front and rear ramps are installed for the convenience of vehicle entry from either direction. The manually extendable and widened lifting platforms are most suitable for the servicing and maintenance on mini van and vehicle with large body frame.

It is extremely simply to operate the lift with safety locking device being constructed to stop the lift from descending further when electricity supply is being cut-off suddenly.

Lifting Capacity 3000kg

Lifting Height 1800mm

Lifting Time 50-60s

External Dimensions 4060*1900*1800mm

Power Supply 380v/220v

Net Weight 1400kg

Packing dimension 3100*2000*245mm / 750*570*320mm / 380*340*900mm

NOTE: No more notice information if the technical date modified

Place of Origin:	Liaoning in China
Model No:	SDY-3000A and SDY-3000B
Brand Name:	HUATONG
FOB Price:	1000-5000 USD Dalian Port
Other Price Terms:	C&F Or CIF
Payment Terms:	L/C,T/T(Bank Transfer),
Minimum Order:	Piece/Pieces 1
Supply Ability:	Piece/Pieces\|500\|Month
Package:	wrapped with plastic close and both sides protected by iron frame
Delivery Time:	According to Clients' requirement
