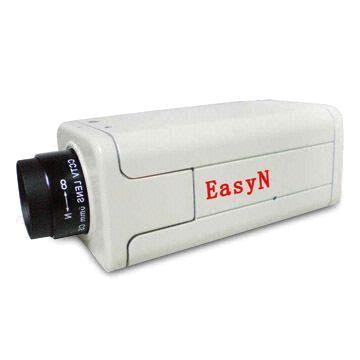

IP Camera

Detailed Product Description

Hardware:
- CPU DSP and MCU
- Built-in Linux operating system
Video:
- Compression format: motion-JPEG-N
- Video system: PAL or NTSC
- Frame rate: up to 25fps (maximum)
- Resolution:
  - PAL: 640 x 480 pixels
  - VGA: 640 x 480 pixels
  - SIF: 320 x 240 pixels
  - QSIF: 160 x 120 pixels
- Contrast, chroma, saturation and image brightness are adjustable
- Delay time less than 500 MSEL (0.50 second) in LAN system
CCD module:
- Image sensor: color CMOS VGA
- Pixel: 300,000 pixels
- Focus(f)/aperture(F): visual angle (reference):
  - f4/F1.6: 63.8°
  - f8/F1.6: 42°
  - f12/F1.6: 23.8°
  - f16/F1.6: 17.1°
  - f25/F1.6: 11°
  - f50/F2.0: 12°
- Minimum illumination: 0.1Lux/F1.6
- Signal-to-noise ratio: >48dB (AGC off)
- Lens mount: C/CS (selectable)
- White balance: auto tracking
- Backlight compensation: auto
Audio:
- Audio processor: built-in and supports sound monitor synchronization
- Automatic audio gain control
