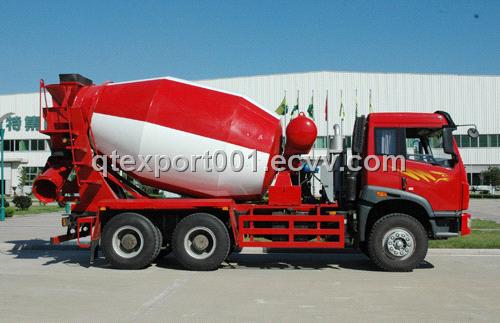

mixer

Detailed Product Description

Drum Volume(m3)	15.1
Mill volume（m3）	9
Max dia and length of Drum（mm）	Φ2300X4575
Drum Slope（°）	14.5
Drum Rotation Speed （r/min）	0~16
Pump Model	5423-518（Amerian Eton）
Motot Model	5433-138（ Amerian Eton ）
Retarder Model	4996747-008（Italy）
Oil Tank Volume(L)	18
Water Tank Volume( L)	350
Chassis Model	BJ3258DLPJB-1
Wheelbase（mm）	3575+1350
Tread front/rear (mm)	2010/1847
Min. ground clearance (mm)	314
Approach angle (°)	16
Departure angle (°)	33
Min. turning circle (m)	19.6
Engine model	WD615.44
Displacement (L)	9.726
Power（Kw）	247
Max. driving speed（Km/h）	85
Gross combination weight（Kg）	13160
Nominal load（Kg）	11645
Gross weight（Kg）	25000
axles	3
Front/rear suspension（mm）	1465/2185
Dimension	Length	8575
	Width	2495
	Height	3880

Place of Origin:	Shandong in China
Model No:	QDT5260GJBE
Brand Name:	QINGTE
FOB Price:	50000-150000 USD QINGDAO
Payment Terms:	L/C,T/T(Bank Transfer),
Minimum Order:	Set/Sets 1
Supply Ability:	Set/Sets\|1000\|Year
Delivery Time:	Within 30 days after receipt of your purchase order
