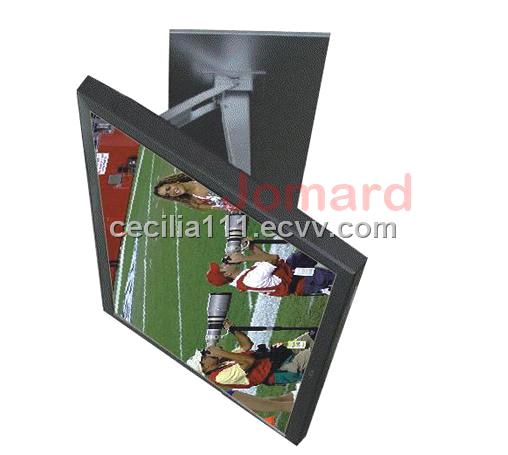

Plasma TV lift

★TXD production is a series of ceiling-mounted lifts with a bird eye view posture to display angled from 15-25, suitable for show hall, middle-small size meeting room and propaganda releasing of government organization. Appropriate screen: 32-60 flat TV, with no constraints of brand, model and specification, can be custom-made accordingly. The most used model is TXD-42FR



●Panel dimension: W680XD340mm

●Lift capacity: 50-120KGS

●Machine dimension: W730XD530mm

●Machine weight:40-80KGS

●Opening dimension: W640XD300mm         ●Operation noisy: 20-50 dB

●Holing dimension: W 517XD272mm          ●Display elevation: 15o-25o

●Ceiling space: >680mm

●Housed way: Drop ceiling/horizontal/ front downwards/

●Travel time: 80-160Sec

●Up and Down accuracy: Horizontal 0.5mm,vertical 0.5mm
