Zhongda Industrial Group Co.,Ltd

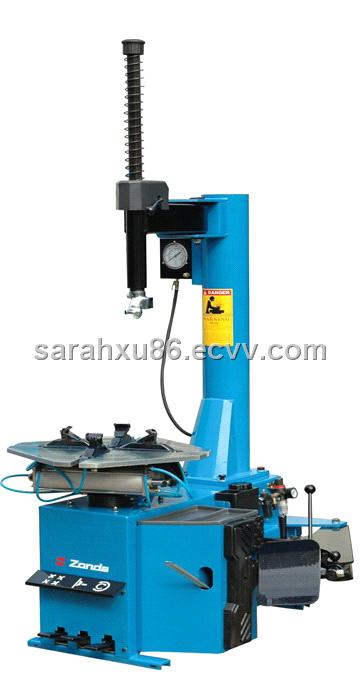

tyre changer

Detailed Product Description

Features

1.Semi-automatic tyre changer with swinging arm for rapid head positioning to the rim.
2.Integrated demounting, mounting and inflating the tyres, wide rim diameter capacity.
3.Self-centering function.
4.High alloy mounting head with optimized profiling and good wearing capacity.
5.Double clamping cylinders ensure accurate centering and reliable clamping.
6.With adjustable opening, bead breaker suitable for various size tyres.
7.Equipped with box type inflating meter.
8.Quick inflating device to make bead seating through air bursts from the turntable slides.
9.Nylon protector for mounting head and clamping jaws.
10.Manual locking of the horizontal and vertical head holder arm.
11.Square turntable.

Technical data

Rim clamping diameter (outer)10”-20”
Rim clamping diameter (inner)12”-21”
Rim width                 3”-12”
Max. wheel diameter        1000mm
Working pressure            8-10bar
Bead breaker force           2500kgf
Turntable RPM              5.5rpm
Torque of turntable           1302Nm
Motor power                1.1/0.75kw
Weight                     250kg
Power supply               110v/220v,380v  60Hz/50hz
Place of Origin:Jiangsu in China
Model No:ZD-S300
Brand Name:Zonda
