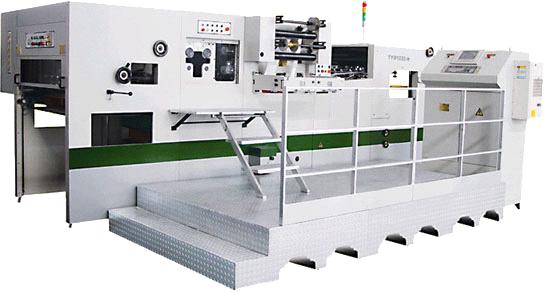

TYM1020-H Foil Stamping and Diecutting Machine

Detailed Product Description

Model	TYM1020-H
Max. Paper Size	1020X720MM
Min. Paper Size	400X360MM
Max. Cutting Size	1010X710MM
Max. Foil Stamping Size	Longitudinal 970X685MM Lateral 960X600MM
Foil-conveying Shaft Quantities	Longitudinal 3 pcs Lateral 2 pcs
Max. Length of Foil Conveying	Longitudinal 700MM Lateral 970MM
Quantities of Heating Areas	12pcs
Heating Temperature	0℃-190℃(adjustable)
Max. Foil Diameter	Φ195MM/3" Φ100MM/1"
Thickness of Paper	Cardboard 0.1-1.5MM， Corrugated Paper ≤4MM
Max. Cutting Speed	6500S/H
Max. Stamping Speed	5000S/H
Total Power	46.5KW
Pressure	250T
Net Weight	18.5T
Overall Dimension	5470X3940X2585MM
