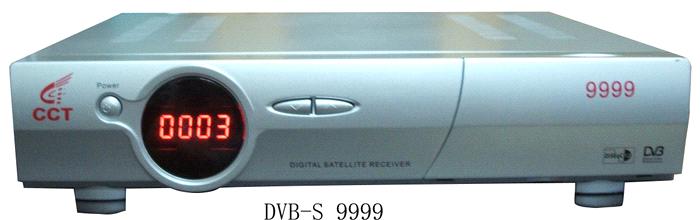

DVB-S Digital Satellite Receiver 4100

Product: Digital Satellite Receiver (DVB-S)
Item No.: CCT-9999
Place of Origin: China
Device features:
1.MPEG-2 Digital & Fully DVB Compliant.
2. MPEG/Music Cam layerⅠand Ⅱ,CD Quality Audio Sound.
3.Quick Channel Switching Time.
4.Fast Channel downloaded from Satellites.
5.SCPC & MCPC Receiverable from C/Ku-Band Satellites.
6.256 Colors On Screen Display.
7.Easy Installing Program Setup.
8.DiSEaC1.2 Control and 22K Tone.
9.Subtitle & Teletext Supported by OSD & VBI.
10.Parental Lock Facility channel and Program event.
11.Suppory to store 3 Favorite List (100 channels each).
12.Small Window Screen Picture with EPG and Channel property menu.
13.Alphabetic (A to Z or Z to A)order channel property menu.
14.Channel name and Satellite name edit function.
15.Support menu languages(Arabic,English,French,Russion,Spanish,Deutch,Turkey).
16.Channel list by satellite.
17.Blind Search /Automatic Search/TP Search.
18.Firmware and channel date be downloaded through RS232 from PC to Set and from Set to Set.
19.Storage up to 5000 channels.
20.Support 9PIG、ZOOM Function and Standby Clock display.

Technical Specifications
●Tuner & Demodulator
Input Frequency Range : 950MHz to 2150MHz
RF Input Signal Level : -25 to -65dB
RF Impedance : 75 Ω
LNB Power : 13/18DC
Demodulation : QPSK
DiSEqC Control : Version 1.2
Symbol Rate : 2～45Ms/s
●MPEG
Transport Stream : MPEG-2 ISO/IEC 13818 Specification
Input Rate : Max.15Mbit/s
Video Decode :Comply with ISO/IEC13818-2 MP@ML Standard,PAL/NTSC/AUTO Compliant
Audio Decode : MPEG-2
Aspect Ratio : 4:3, 16:9
Vedio Resolution : 720*576(PAL),720*480(NTSC)
Audio Mode : Stereo, Left/Right Channel
Audio Sampling Frequency : 32/44.1/48 Khz
●Connector
LNBIF Input : F Type, IEC 169-24 Female
LNB IF LOOP Output : F Type, IEC 169-24 Female
RS-232 connector : Update function, connect to PC or another STB
●RF-Modulator
RF-Connector : 75 Ω IEC 169-2 Male / Female
Output Channel : CH 21 for the Demodulator
Frequency : 471 MHz to 855MHz
TV Standard : PAL D/K I B/G NTSC M Selectable By Menu Setting
●Power Supply
Input Voltage : 90～240V AC(SMPS)
Power Consumption : Max.20W
Operating Temperature : 0℃～40℃
Storage Temperature : -40℃～65℃
