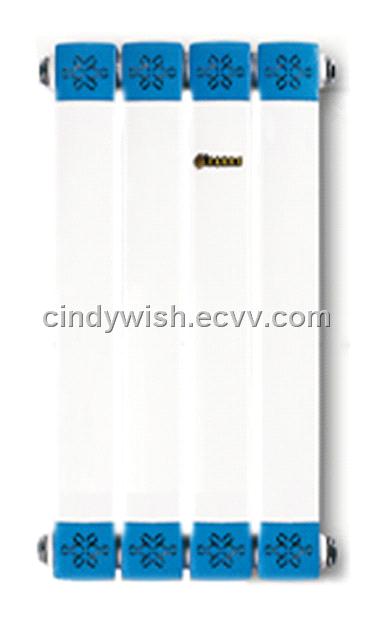

Copper-Aluminum Radiator

Detailed Product Description

SCTLZY 9-6/X-1.0-IV

The entrance and exit Central distance of the same side(mm)	Height(mm)	Length(mm)×Width(mm)	Operating pressure(Mpa)	Volume of water(L)	Heat dissipating capacity per piece(W)
300	350	90×62	1.0	0.269	78.9
400	450	90×62	1.0	0.307	96.2
500	550	90×62	1.0	0.345	114.5
600	650	90×62	1.0	0.383	130.8
700	750	90×62	1.0	0.421	149.1
800	850	90×62	1.0	0.459	167.4
900	950	90×62	1.0	0.497	184.7
1000	1050	90×62	1.0	0.535	201.1
1100	1150	90×62	1.0	0.573	218.4
1200	1250	90×62	1.0	0.611	235.7
1300	1350	90×62	1.0	0.649	254.9
1400	1450	90×62	1.0	0.687	275.1
1500	1550	90×62	1.0	0.725	295.3
1600	1650	90×62	1.0	0.763	313.6
1700	1750	90×62	1.0	0.801	333.8
1800	1850	90×62	1.0	0.839	354.0
