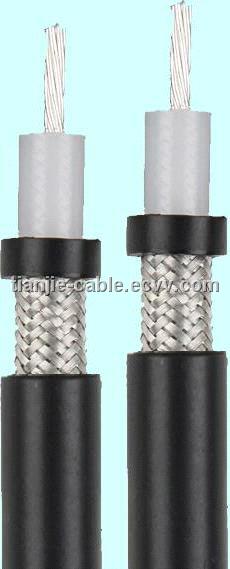

Coaxial Cable (RG179)

Coaxial Cable (RG179)

Contact Now

Detailed Product Description

●RG179
BASIC CONSTRUCTION
CONDUCTOR			STANDARD SHIELD
	MATERIAL		copper clad steel,silvered
	Nom.Dia.		7*0.10mm
DIELECTRIC	MATERIAL		PTFE
	Nom.Dia.		1.60mm
SHIELD	MATERIAL		silvered copper braid
	COVERAGE		40%-95%
JACKET	MATERIAL		FEP
	Nom.Thick.		0.4mm
	Nom.Dia.		2.54mm
BASIC CHARACTERISTICS
Nominal Impedance(Ω)				75±3
Nominal Velocity of Propagation(%)				69.5
Nominal Capacitance(pF/m)				64
Sparker Test (VAC)				4000
SRL (dB)		50-300		＞22
		300-1000		＞20
Attenuation		Frequency(MHz)		Maximum(dB/100m)		Maximum(dB/100ft)
		100		26.800		7.66
[@68°F(20℃)]		400		54.900		15.69
		1000		88.300		25.23

Model No:	RG179
Payment Terms:	L/C,T/T(Bank Transfer),
Others Payment Terms:	30% T/T in advance
Minimum Order:	Kilometer 10
