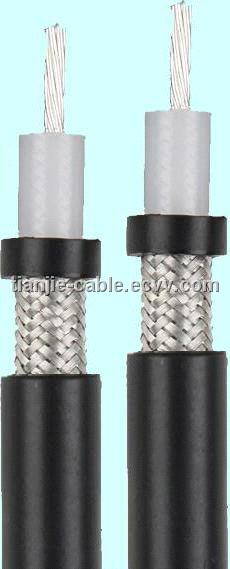

Coaxial Cable (RG216)

Coaxial Cable (RG216)

Contact Now

Contact Now

Detailed Product Description

●RG216

BASIC CONSTRUCTION
CONDUCTOR		STANDARD SHIELD
	MATERIAL	standed copper wires,tinned
	Nom.Dia.	7*0.39￠1.2mm
DIELECTRIC	MATERIAL	PE
	Nom.Dia.	7.11mm
SHIELD	MATERIAL	copper braid
	COVERAGE	45-90%
JACKET	MATERIAL	PVC
	Nom.Thick.	1.05mm
	Nom.Dia.	10.8±0.15mm

BASIC CHARACTERISTICS
Nominal Impedance(Ω)			75±3
Nominal Velocity of Propagation(%)			66
Nominal Capacitance(pF/m)			67
Sparker Test (VAC)			4000
SRL (dB)		50-300	＞26
		300-1000	＞22
Attenuation	Frequency(MHz)		Maximum(dB/100m)		Maximum(dB/100ft)
	10		1.8		0.51
	100		6.5		1.86
	400		14.1		4.03
[@68°F(20℃)]	1000		25.2		7.20
	2000		43.0		12.29
	3000		59.0		16.86

Place of Origin:	China\|
Model No:	RG216
Brand Name:	Tianjie
Payment Terms:	L/C,T/T(Bank Transfer),
Others Payment Terms:	30% T/T in advance
Minimum Order:	Kilometer 10
