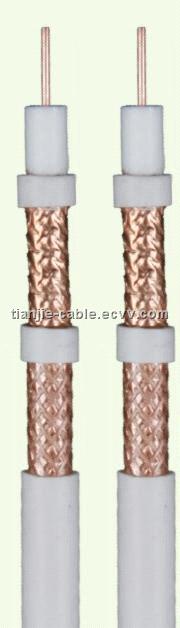

Coaxial Cable (17VATC)

Coaxial Cable (17VATC) 17AVTC/PATC/VRTC

Coaxial Cable (17VATC)

  Prev Product Contact Now Next Product

Detailed Product Description
























































































































































●17AVTC/PATC/VRTC






　
　






BASIC CONSTRUCTION
　





　
　
STANDARD SHIELD



CONDUCTOR
MATERIAL
BC



Nom.Dia.
1.13mm



DIELECTRIC
MATERIAL
Foam PE



Nom.Dia.
4.85mm



SHIELD
MATERIAL
Al foil+



TC braiding



COVERAGE
35%-90%



JACKET
MATERIAL
PVC/PE



Nom.Thick.
0.80mm



Nom.Dia.
6.80mm



　
　
　





BASIC CHARACTERISTICS
　
　
　
　

Nominal Impedance(Ω)
75

Nominal Velocity of Propagation(%)
83

Nominal Capacitance(pF/m)
52

Sparker Test (VAC)
4000

SRL (dB)
20
20

Attenuation
Frequency(MHz)
Maximum(dB/100ft)
Maximum(dB/100m)

5
0.46

1.50

55
1.31

4.30

100
1.80

5.90

[@68°F(20℃)]
200
2.56

8.40

400
3.66

12.00

800
5.34

17.50

950
5.86

19.20

1000
6.04

19.80
Place of Origin:China|
Model No:17AVTC/PATC/VRTC
Brand Name:Tianjie
Payment Terms:L/C,T/T(Bank Transfer),
Others Payment Terms:30% T/T in advance
