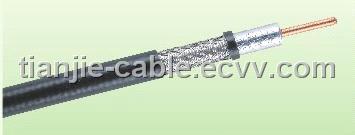

Coaxial Cable (11AVTC/PATC)

Coaxial Cable (11AVTC/PATC) 11AVTC/PATC

Coaxial Cable (11AVTC/PATC)

  Prev Product Contact Now Next Product

Detailed Product Description

Basic construction
　
　
Standard shield
Conductor
Material
BC / CCS
Nom. Dia.
1.70 mm
Dielectric
Material
Foam PE
Nom. Dia.
7.00 mm
SHIELD
Material
Al foil
TC braiding
Coverage
40% - 90%
JACKET
Material
PVC / PE
Nom. Thick.
1.07 mm
Nom. Dia.
10.30 mm
Basic characteristic
Nominal impedance (Ω)
75
Nominal velocity of propagation(%)
88
Nominal capacitance (pF / m)
50
Sparker test (VAC)
4000
SRL (dB)
20
20
Attenuation
Frequency (MHz)
Maximum (dB / 100 ft)
Maximum (dB / 100 m)
5
0.27
0.90
55
0.82
2.70
100
1.16
3.80
[@68°F(20℃)]
200
1.65
5.40
400
2.35
7.70
800
3.36
11.00
950
3.69
12.10
1000
3.78
12.40
Model No:11AVTC/PATC
Payment Terms:L/C,T/T(Bank Transfer),
Others Payment Terms:30% T/T in advance
