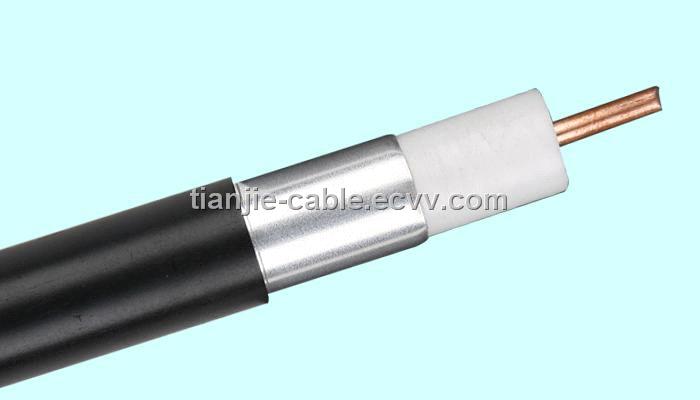

Coaxial Cable (320)

Coaxial Cable (320)

Coaxial Cable (320)

  Prev Product Contact Now Next Product

Detailed Product Description

●320
　
　
BASIC CONSTRUCTION
　
　
　
CONDUCTOR
　
STANDARD SHIELD
MATERIAL
CCS/CU
Nom.Dia.
1.8mm
DIELECTRIC
MATERIAL
FPE
Nom.Dia.
7.47mm
SHIELD
MATERIAL
AL
Nom Thick
0.25mm
JACKET
MATERIAL
PE
Nom.Thick.
0.89mm
Nom.Dia.
10.03mm
　
　
　
　
BASIC CHARACTERISTICS
　
　
　
　
　
Nominal Impedance(Ω)
75±3
Nominal Velocity of Propagation(%)
87
Nominal Capacitance(pF/ft)
15.3±1.0
Sparker Test (VAC)
4000
SRL (dB)
50-300
20
300-1000
20
Attenuation
Frequency(MHz)
Maximum(dB/100m)
Maximum(dB/100ft)
5
0.79
0.24
55
2.76
0.84
83
3.51
1.07
211
5.68
1.73
250
6.10
1.86
300
6.69
2.04
[@68°F(24℃)]
350
7.38
2.25
400
7.81
2.38
450
8.27
2.52
500
8.92
2.72
550
9.35
2.85
600
9.78
2.98
750
10.96
3.34
865
11.88
3.62
1000
12.76
3.89
Place of Origin:Zhejiang in China
Brand Name:Buyer's or TIANJIE
Payment Terms:L/C,T/T(Bank Transfer),
Others Payment Terms:30% T/T in advance
Minimum Order:Kilometer 10
