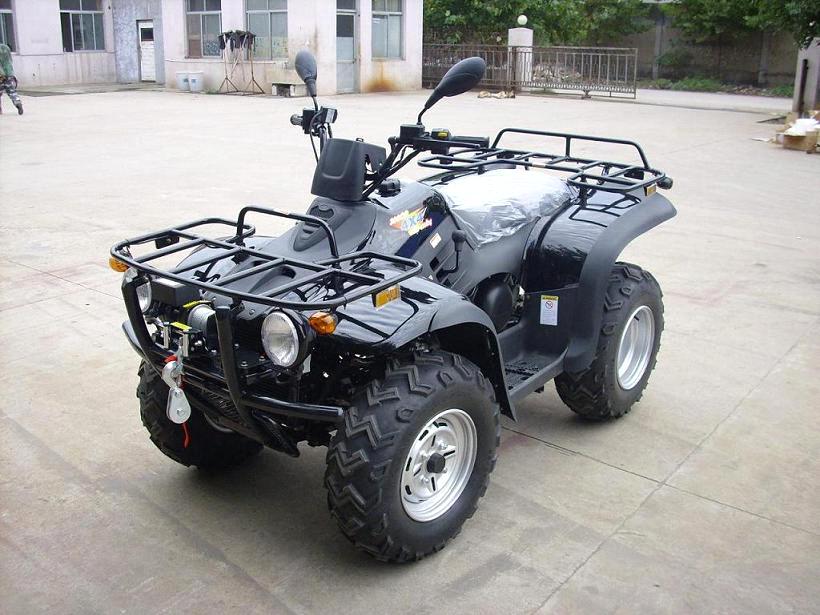

ATV 4X4

Detailed Product Description

Overall Dimension LWH	2070mm1150mm1175mm
Ground clearance	200mm
Max Speed	≥60km/h
Climbing Ability	≥30°
Specification of Front wheel	25*8-12（38F）
Specification of Rear wheel	25*10-12（45F）
Distance between front wheel	860mm
Distance between rear wheel	860mm
Distance between front and rear wheel	600mm
Seat high	900mm
Distance between front axle and rear axle	1235mm
Gross weight	350kg
Dry weight	300kg
system front/rear Brake	Disk/Disk
Engine	One Cylinder/Four Stroke
Cylinder dia..*Working stroke	71mm*71mm
Efficient Capacity	264ml
Rated Power and Rotate Speed	15.2KW/7600r/min
Max Torque and Rotate Speed	23N.m/6000r/min
Compressing Ratio	2.444-0.829
Gearshift Mode	CVT/Reverse
Transmission	4 drive/Shaft drive , manual front drive
Starting System	Electric
Cooling System	Water- Cooling
Fuel tank	13
Loading	12/20 36/40H
Packing measure	19501150860
