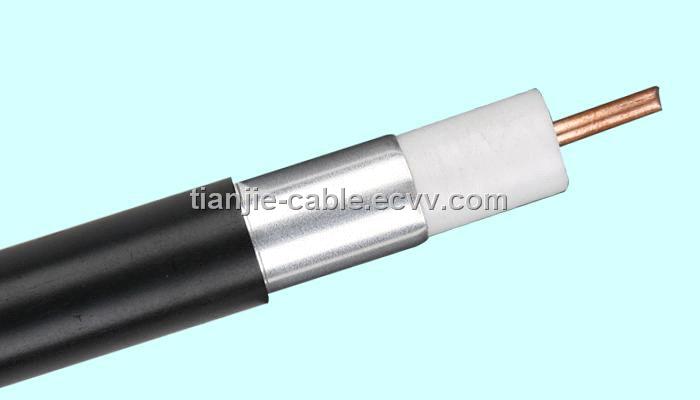

Coaxial Cable (500)

Coaxial Cable (500) 500

Coaxial Cable (500)

  Prev Product Contact Now Next Product

Detailed Product Description

●500
　
　
BASIC CONSTRUCTION
　
　
　
STANDARD SHIELD
CONDUCTOR
MATERIAL
CCA
Nom. Dia.
2. 77mm
DIELECTRIC
MATERIAL
Foam PE
Nom. Dia.
11. 43mm
SHIELD
MATERIAL
Al Tube
COVERAGE
100%
JACKET
MATERIAL
PVC/PE
Nom. Thick.
1. 02mm
Nom. Dia.
14. 22mm
　
　
　
BASIC CHARACTERISTICS
　
　
　
　
Nominal Impedance(Ω)
75
Nominal Velocity of Propagation(%)
88
Nominal Capacitance(pF/m)
50
Sparker Test (VAC)
4000
SRL (dB)
20
20
Attenuation
Frequency(MHz)
Maximum(dB/100ft)
Maximum(dB/100m)
5
0. 16
0. 52
50
0. 52
1. 71
211
1. 09
3. 58
[@68°F(20℃)]
300
1. 31
4. 30
450
1. 63
5. 35
550
1. 82
5. 97
750
2. 16
7. 09
1000
2. 52
8. 27
Place of Origin:Zhejiang in China
Model No:500
Payment Terms:L/C,T/T(Bank Transfer),
Others Payment Terms:30% T/T in advance
Minimum Order:Kilometer 10
