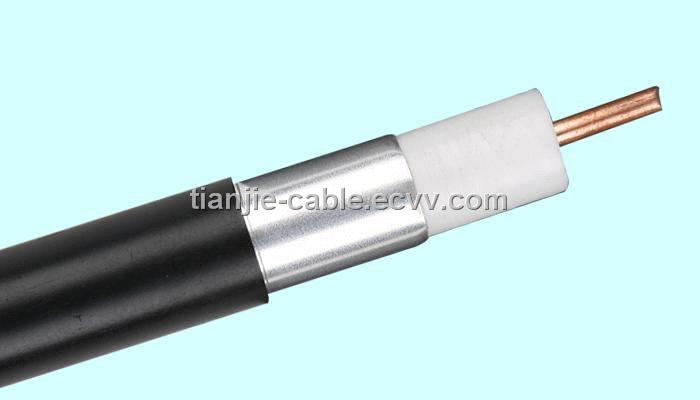

Coaxial Cable (540)

Coaxial Cable (540) 540

Coaxial Cable (540)

  Prev Product Contact Now Next Product

Detailed Product Description





















































































































































●540







　
　






BASIC CONSTRUCTION
　





　
　
STANDARD SHIELD



CONDUCTOR
MATERIAL
CCA



Nom.Dia.
3.15mm



DIELECTRIC
MATERIAL
Foam PE



Nom.Dia.
13.00mm



SHIELD
MATERIAL
Cu foil+BC braiding



COVERAGE
35%-90%



JACKET
MATERIAL
PVC/PE



Nom.Thick.
0.90mm



Nom.Dia.
15.50mm



　
　
　





BASIC CHARACTERISTICS
　
　
　
　

Nominal Impedance(Ω)
75

Nominal Velocity of Propagation(%)
88

Nominal Capacitance(pF/m)
50

Sparker Test (VAC)
4000

SRL (dB)
20
20

Attenuation
Frequency(MHz)
Maximum(dB/100ft)
Maximum(dB/100m)

5
0.14

0.46

50
0.44

1.44

150
0.79

2.59

[@68°F(20℃)]
300
1.13

3.71

400
1.32

4.33

500
1.49

4.89

600
1.64

5.38

1000
2.17

7.12
Place of Origin:Zhejiang in China
Model No:540
Brand Name:Tianjie / Buyer's
Payment Terms:L/C,T/T(Bank Transfer),
Others Payment Terms:30% T/T in advance
