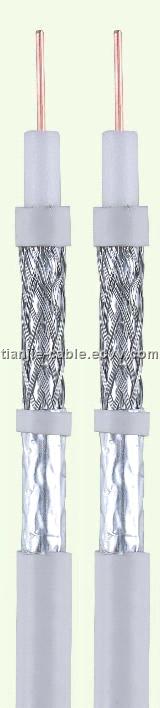

Coaxial Cable (24VATC/PATC/VRTC)

Coaxial Cable (24VATC/PATC/VRTC)

Coaxial Cable (24VATC/PATC/VRTC)

  Prev Product Contact Now Next Product

Detailed Product Description

●24AVTC/PATC/VRTC
　
　
BASIC CONSTRUCTION
　
　
　
STANDARD SHIELD
CONDUCTOR
MATERIAL
BC/CCS
Nom. Dia.
0. 80mm
DIELECTRIC
MATERIAL
Foam PE
Nom. Dia.
3. 70mm
SHIELD
MATERIAL
Al foil+TC braiding+
Al foil
COVERAGE
35%-90%
JACKET
MATERIAL
PVC/PE
Nom. Thick.
0. 80mm
Nom. Dia.
5. 85mm
　
　
　
BASIC CHARACTERISTICS
　
　
　
　
Nominal Impedance(Ω)
75
Nominal Velocity of Propagation(%)
85
Nominal Capacitance(pF/m)
50
Sparker Test (VAC)
4000
SRL (dB)
20
20
Attenuation
Frequency(MHz)
Maximum(dB/100ft)
Maximum(dB/100m)
5
0. 58
1. 90
50
1. 80
6. 00
100
2. 56
8. 40
[@68°F(20℃)]
200
3. 63
11. 90
400
5. 15
16. 90
800
7. 32
24. 00
950
8. 02
26. 30
1000
8. 24
27. 00

Place of Origin:Zhejiang in China
Payment Terms:L/C,T/T(Bank Transfer),
Others Payment Terms:30% T/T in advance
