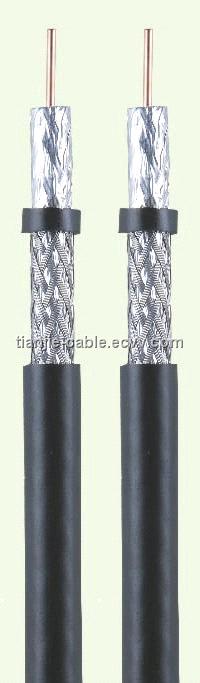

Coaxial Cable (4D-FB)

Detailed Product Description

●4D-FB 5D-FB

BASIC CONSTRUCTION
		4D-FB		5D-FB
CONDUCTOR	MATERIAL	BC/CCS		BC/CCS
	Nom.Dia.	1.42mm		1.80mm
DIELECTRIC	MATERIAL	Foam PE		Foam PE
	Nom.Dia.	3.80mm		5.00mm
SHIELD	MATERIAL	Al Foil+TC Braiding		Al Foil+TC Braiding
	COVERAGE	85%		85%
JACKET	MATERIAL	PVC/PE		PVC/PE
	Nom.Thick.	0.80mm		0.80mm
	Nom.Dia.	6.10mm		7.50mm

BASIC CHARACTERISTICS
Nominal Impedance(Ω)			50		50
Nominal Velocity of Propagation(%)			82		82
Nominal Capacitance(pF/m)			81		81
Cutoff frequency(GHZ)			30		23
Sparker Test (VAC)			3000		3000
V.S.W.R			≤1.3		≤1.3
Attenuation	Frequency(MHz)		4D-FB		5D-FB
	150		10.00		7.80
	200		11.50		9.10
	280		12.90		10.90
	350		16.50		12.20
	400		17.60		13.00
[@68°F(20℃)]	800		23.60		18.90
	900		24.50		20.00
	1200		28.30		24.00
	1500		33.50		27.20
	1900		37.70		31.30
	2000		38.70		32.50
	2400		42.60		35.80
	3000		48.60		40.90
