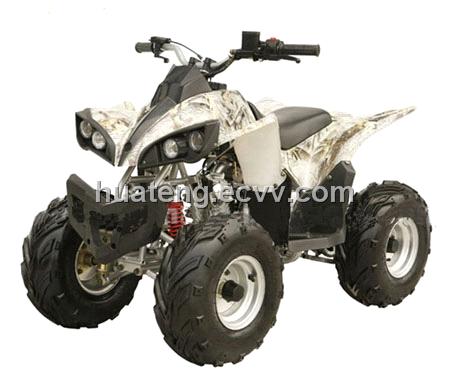

ATV (HA50S-19)

1) Dimensions (L x W x H): 1,300 x 730 x 760 mm

2) Wheelbase: 850 mm

3) Seat height: 650 mm

4) Min. ground clearance: 90 mm

5) Rated loading: 80 kg

6) Max. speed: 35 km/h

7) Tires:

A) Front wheels: 16 x 8 - 7

B) Rear wheels: 16 x 8 - 7

8) Break type (F/R): drum / disk

9) Fuel tank capacity: 3.5 L

10) Power source: 12 V, 3 Ah

11) Min. Turning radius: 1510 mm

12) Engine type: 50cc, single cylinder, air-cooling, 4-stroke, automatic clutch

13) Cylinder size: 47 x 41.4 mm

14) Compression proportion: 8.8 :1

15) Displacement: 49 ml

16) Rated power: 3.1 kw / 7,500 r/min

17) Max. torque: 4.5 N.M / 5500 r/min

18) Transmission mode: chain

19) Ignition mode: CDI

20) Lubrication: press splash

21) Start mode: electric

22) Outer packing:

Carton dimensions: 1170 x 770x 616 mm

Conveyance:

Qty/20' GP: 45 units

Qty/40' GP: 90 units

Qty/40' HQ: 120 units
