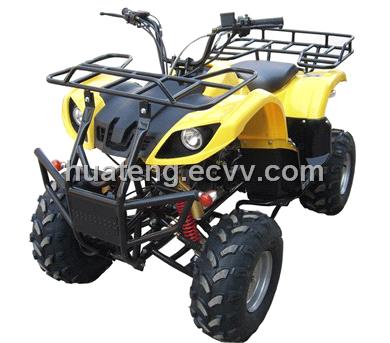

110cc ATV (HA110s-15)

Prev Product

Next Product

Detailed Product Description

1) Engine type: single cylinder, 4-stroke, air-cooled, semi-automatic,110cc
2) Max. power: 4.6kW/7,500rpm
3) Max. torque: 6.5N.m/6,500rpm
4) Compression ratio: 9.0:1
5) Max. speed: 45km/h
6) Lubrication oil capacity: 0.9L
7) Min. fuel consumption: 365g/kW.h
8) Transmission: by chain
9) Brake: front drum brake, rear hydraulic disc brake
10) Front hanging: double arm-swing; rear hanging: integral
11) Seat height: 80cm
12) Wheel base: 1,110mm
13) Front track: 760mm
14) Rear track: 680mm
15) Min. ground clearance: 140mm
16) Front tires: 19 x 7-8; back tires: 18 x 9.5-8
17) Length x width x height: 1,730 x 920 x 1,050mm
Packing:
Carton dimensions: 1,480 x 840 x 810mm
N.W.: 130kg
G.W.: 150kg
Conveyance:
Qty/20' GP: 31pcs
Qty/40' GP: 66pcs
Qty/40' HQ: 66pcs

Place of Origin:	Zhejiang in China
Model No:	HA110S-15
Delivery Time:	15
