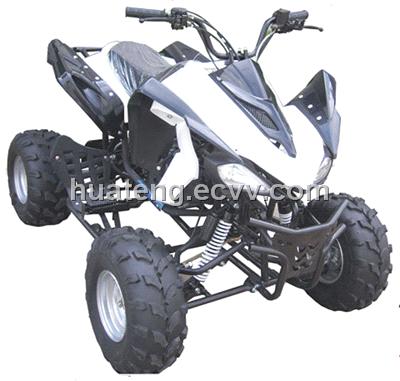

ATV (HA150S-34A)

1) Dimensions (L x W x H): 1600 x 1010 x 1050mm

2) Wheelbase: 1100mm

3) Seat height: 730mm

4) Min.Ground clearance: 110mm

5) Rated loading: 130kg

6) Max. Speed: 50km/h

7) Tires:

A) Front wheels: 19 x 7 - 8

B) Rear wheels: 18 x 9.5- 8

8) Break type (F/R): drum/disc

9) Fuel tank capacity: 4.5L

10) Power source: 12V, 3Ah

11) Min. Turning radius: 1510mm

12) Engine type: 150CC, single cylinder, air-cooling, 4-stroke,full automatic

13) Cylinder size: 47 x 41.4mm

14) Compression proportion: 10:1

15) Displacement: 150CC

16) Max Power: 5.5kW/8000r/min,

17) Max. Torque: 8.3N.M/ 5500r/min

18) Transmission mode: chain

19) Engine oil: 0.8L

20) Ignition mode: CDI

21) Lubrication: press splash

22) Start mode: electric

Outer packing:

Carton dimensions: 1480 x 830 x 740mm

Conveyance:

Qty/20' GP: 33units

Qty/40' GP: 66 units
