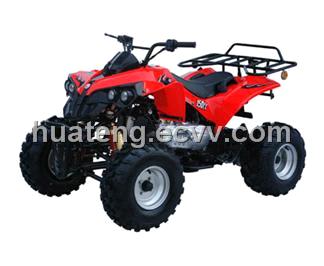

ATV (HA150S-16)

ATV (HA150S-16) HA150S-16

ATV (HA150S-16)

  Prev Product Contact Now Next Product

Detailed Product Description

1) Dimensions (L x W x H): 1230 x 635 x 830mm
2) Wheelbase: 850mm
3) Seat height: 580mm
4) Min. Ground clearance: 120mm
5) Rated loading: 80kg
6) Max. Speed: 35km/h
7) Tires:
A) Front wheels: 14. 5 x 7 - 6
B) Rear wheels: 14. 5 x 7 - 6
8) Break type (F/R): drum/disc
9) Fuel tank capacity: 3. 0L
10) Power source: 12V, 3Ah
11) Min. Turning radius: 1510mm
12) Engine type: 150cc, single cylinder, air-cooling, 4-stroke, full automatic
13) Cylinder size: 47 x 41. 4mm
14) Compression proportion: 8. 8: 1
15) Displacement: 49ml
16) Max Power: 3. 5kW/8000r/min,
17) Max. Torque: 4. 5N. M/ 5500r/min
18) Transmission mode: chain
19) Engine oil: 0. 8L
20) Ignition mode: CDI
21) Lubrication: press splash
22) Start mode: electric
Outer packing:
Carton dimensions: 1480 x 830 x 736mm
Conveyance:
Qty/20' GP: 22units
Qty/40' GP: 66 units
Qty/40' HQ: 66units
Place of Origin:Zhejiang in China
Model No:HA150S-16
Delivery Time:15
