NAME |

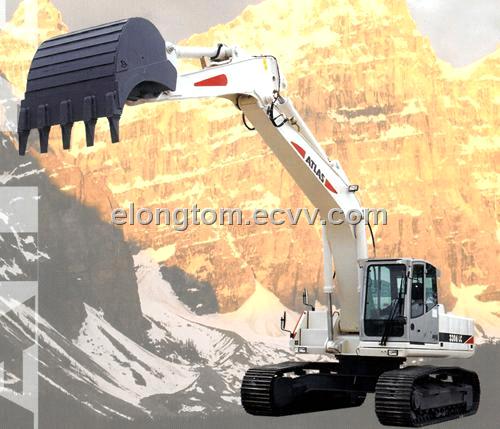

ATLAS2306LC |
Engine |
Manufacturer |
Deutz engine Germany |
Model |
BF6M1013ECP |
Rated power |
161kw(219HP) |
(ISO1585)Max power |
170kw(231HP) |
Oylinder/mdel |
Six-in-lin |
Olylinder bore and stroke |
108×130mm |
Displacement of piston |
7146cm3 |
Charging |
Turbo charging inter-cooled |
Emission conforms to Euro II |
Hydraulic system |
Equip with AWE-6 electrical control system adopt load sensing technology for hydraulic system and with precision-ratio fuel saving for fuel supply control. |
Two-stage safeguard for hydraulic system against over load |
Anti cavitations function, throttle function in the lifting and folding circuit |
Keeping pressure and fine control in the lifting and folding circuit |
Main pump |
double axial piston pump |
Model |
Linde HPR 160/160 |
System output |
32/320L/min |
Max operating pressure |
320/380bar |
Electrical system |
Operating voltage |
24v |
High-performance battery |
2×120Ah |
Electrical system accords with stVZO |
Slewing mechanism |
Torque with proportional control, brake flexibility |
Slewing motor |
Axial plunger motor with pilot valve |
Slewing gear box |
Planetary gearing |
Slewing brake |
Disc brake |
Slewing speed |
9r/min |
Slewing torque |
93.4kNm |
Slewing operation is locked by foot brake pedal when straight forward travels, if slewing pressure is lower than 120 bars |
Travel mechanism |
Drive unit located inside of the chassis frame |
Planetary gear |
Automatic acting multi-disc-brake |
Double acting traveling brake valve |
Dual-stage speed drive motor, automatic change of the traveling speed in case drive resistance increases or decreases |
Travel speeds: |
Stage1 |
0-2.6km/h |
Stage2 |
0-5.3km/h |
Noise level |
Noise level well below BJ limits(dynamic noise measurements acc.2000/14 /BJ regulations) |
Outside cab |
104dB(A) |
Inside cab |
74dB(A) |
Undercarriage |
Special design X-shape frame with high strength high rigidity and long duration |
High ground clearance with nice mareuverablility |
Longer drive mechanism improves the stability of the machine |
Sealed and lubricated track |
Stable and long life idler, track roller and carrier roller |
High quality driving roller |
Configuration parameter of whole machine |
Operating weight |
30500kg(not including operator, lubricant, cooling fluid, fuel) |
JibD84.3 length |
2800mm |
Equipment |
A84.81 C 84.81 F849 |
Jib height(max.) |
7650mm |
Digging depth(max) |
6900mm |
Length of jib(max) |
8650mm |
Outreach radius(max) |
10250mm |
Outreach length(max) |
6250mm |
Outreach height (max) |
8550mm |
Bucket pivot |
5200mm |
Bucket |
1600L |
Jib digging force |
9144KN |
Bucket digging force |
235KN |
Operating system |
Servo device with adjustable dual control system (SAE recommendation): manual control for forward, backward and turning |
Foot pedals for forward and backward drive conforming to ISO mode |
