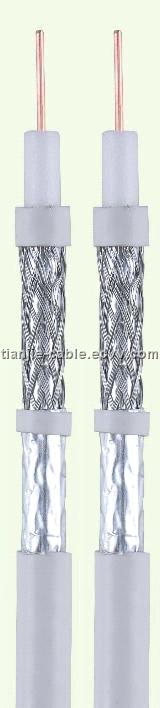

Electrical Coaxial Cable (73451)

Electrical Coaxial Cable (73451) 73451

Electrical Coaxial Cable (73451)

  Prev Product Contact Now Next Product

Detailed Product Description

●73451
　
　
BASIC CONSTRUCTION
　
CONDUCTOR
　
STANDARD SHIELD
MATERIAL
Solid SC
Nom. Dia.
20AWG
DIELECTRIC
MATERIAL
Foam PE
Nom. Dia.
3. 76mm
SHIELD
MATERIAL
Al foil and TC braid
COVERAGE
80%
JACKET
MATERIAL
PVC
Nom. Thick.
0. 56mm
Nom. Dia.
6. 0mm
　
　
BASIC CHARACTERISTICS
　
　
　
　
　
　
Nominal Impedance(Ω)
75
Nominal Velocity of Propagation(%)
80
Nominal Capacitance(pF/m)
53. 13
Sparker Test (VAC)
4000
SRL (dB)
50-300
20
300-1000
20
Attenuation
Frequency(MHz)
Maximum(dB/100m)
Maximum(dB/100ft)
1
0. 82
0. 25
CEPT1
0. 89
0. 27
CEPT2
1. 61
0. 49
[@68°F(20℃)]
5
1. 77
0. 54
10
2. 49
0. 76
CEPT3
3. 25
0. 99
DS3
3. 77
1. 15
STS1
4. 10
1. 25
50
5. 74
1. 75
CEPT4
6. 85
2. 09
STS3
7. 28
2. 22
100
8. 30
2. 53
DS4
9. 94
3. 03
200
12. 43
3. 79
Place of Origin:Zhejiang in China
Model No:73451
Payment Terms:L/C,T/T(Bank Transfer),
Others Payment Terms:30% T/T in advance
Minimum Order:Kilometer 10
