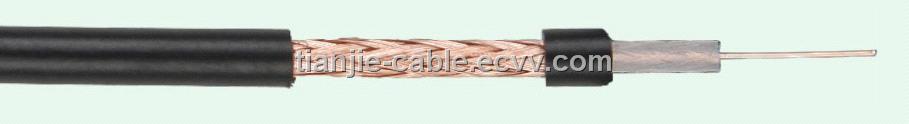

Automobile Antenna Cable (AMC-59 Flex)

Automobile Antenna Cable (AMC-59 Flex)

Automobile Antenna Cable (AMC-59 Flex)

  Prev Product Contact Now Next Product

Detailed Product Description

●AMC-59 Flex
　
　
BASIC CONSTRUCTION
　
　
　
CONDUCTOR
　
STANDARD SHIELD
MATERIAL
Stranded Bare Copper
Nom. Dia.
22AWG
DIELECTRIC
MATERIAL
Foam PE
Nom. Dia.
3. 65mm
SHIELD
MATERIAL
34AWG Bare Copper
COVERAGE
93%
JACKET
MATERIAL
PVC
Nom. Thick.
0. 86mm
Nom. Dia.
6. 15±0. 18mm
　
　
　
BASIC CHARACTERISTICS
　
　
　
　
　
　
Nominal Impedance(Ω)
75±3
Nominal Velocity of Propagation(%)
80
Nominal Capacitance(pF/m)
59
Sparker Test (VAC)
4000
SRL (dB)
50-300
20
300-1000
20
Attenuation
Frequency(MHz)
Maximum(dB/100m)
Maximum(dB/100ft)
1
1. 28
0. 39
10
3. 48
1. 06
50
8. 07
2. 46
100
11. 45
3. 49
[@68°F(20℃)]
200
16. 70
5. 09
400
24. 74
7. 54
700
34. 58
10. 54
900
40. 29
12. 28
1000
42. 75
13. 03
Place of Origin:Zhejiang in China
Payment Terms:L/C,T/T(Bank Transfer),
Others Payment Terms:30 T/T in advance
Minimum Order:Kilometer 10
