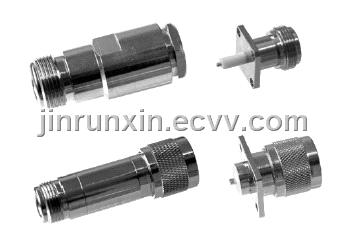

RF Coaxial Connector N Series

Detailed Product Description

1. Technical Characteristics:

Temperature range: -65~+165℃

2. Electrical Characteristics:

Characteristic impedance: 50Ω

Working voltage: 1000V max

Frequency range: 0~11GHz

Dielectric withstanding voltage: at sea level 1500V (volts RMS)

Contact resistance: center contact ≤10.0mΩ

Outer contact ≤5.0mΩ

Insulation resistance: ≥1000 mΩ

VSWR: Straight ≤1.30

3. Mechanical Characteristics

Body or other metallic part: Brass, gold plated

Male center contacts: Brass, gold plated

Female center contacts: Beryllium copper, gold plated

Insulators: PTFE

Crimp ferrules: Copper alloy, nickel or gold plated

Sealing washer: Silicone rubber

Connector durability: 500 cycles

The product is compliance with ROHS standard.

We can develop and manufacture all sorts of RF coaxial connectors according to your special requirements on OEM basis, welcome to contact us for more information.

Place of Origin:	Jiangsu in China
Model No:	N
Brand Name:	JINRUNXIN
