Detailed Product Description
1. Technical Characteristics:
Temperature range: -65~+165℃
2. Electrical Characteristics:
Characteristic impedance: 50Ω
Working voltage: 335V max
Frequency range:
flexible cables: 0~12.4GHz; semi-rigid cables: 0~18GHz
Dielectric withstanding voltage: at sea level 1000V (volts RMS)
Contact resistance: center contact ≤3.0mΩ
Outer contact ≤2.0mΩ
Insulation resistance: ≥5000 mΩ
VSWR:
Straight: flexible cables ≤1.15+0.02f; semi-rigid cables ≤1.15+0.01f
Right-angle: flexible cables ≤1.20+0.03f; semi-rigid cables ≤1.10+0.01f
3. Mechanical Characteristics
Body or other metallic part: Brass, gold/nickel plated or stainless steel passivity
Male center contacts: Brass, gold plated
Female center contacts: Beryllium copper, gold plated
Insulators: PTFE
Crimp ferrules: Copper alloy, nickel or gold plated
Connector durability: 500 cycles
The product is compliance with ROHS standard.
We can develop and manufacture all sorts of RF coaxial connectors according to your special requirements on OEM basis, welcome to contact us for more information.
| Place of Origin: | Jiangsu in China |

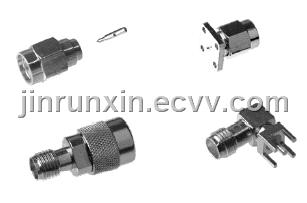

| Model No: | SMA |
| Brand Name: | JINRUNXIN |
