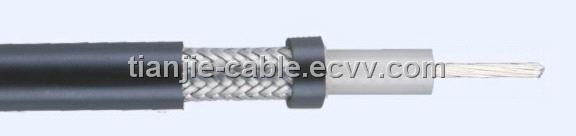

Coaxial Cable (RG223)

Coaxial Cable (RG223)

Contact Now

Detailed Product Description

●RG223

BASIC CONSTRUCTION
CONDUCTOR		STANDARD SHIELD
	MATERIAL	copper wire,silvered
	Nom.Dia.	0.90±0.01mm
DIELECTRIC	MATERIAL	PE
	Nom.Dia.	3.2mm
SHIELD	MATERIAL	copper braid,silvered
		copper braid,silvered
	COVERAGE	45-90%
JACKET	MATERIAL	PVC
	Nom.Thick.	0.8mm
	Nom.Dia.	5.4±0.10mm

BASIC CHARACTERISTICS
Nominal Impedance(Ω)			50±2
Nominal Velocity of Propagation(%)			66
Nominal Capacitance(pF/m)			100
Sparker Test (VAC)			4000
SRL (dB)		50-300	＞26
		300-1000	＞23
Attenuation	Frequency(MHz)		Maximum(dB/100m)		Maximum(dB/100ft)
	10		4.4		1.26
	100		13.9		3.97
	400		29.3		8.37
[@68°F(20℃)]	1000		50.1		14.31
	2000		80.0		22.86
	3000		98.0		28.00

Place of Origin:	Zhejiang in China
Model No:	RG223
Brand Name:	Tianjie
Payment Terms:	L/C,T/T(Bank Transfer),
Others Payment Terms:	30% T/T in advance
Minimum Order:	Kilometer 10
