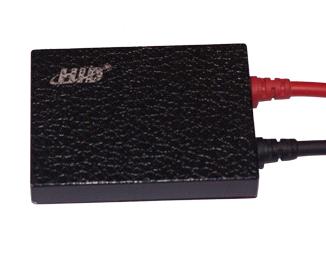

HID xenon kit with DSP silm ballast

Parameters
Technical 12 V 35W

NTER
Enter rated voltage: 13.6V ( 6~18V Within the scope of normal work
Enter starting current: <5.0A (cold)/<4.0A(hot)
Enter current stability: 3.0A (enter 13.5 V DC)
The importation of low-voltage protection: 6.0 -0.5V DC
Resume the importation of low pressure point: 8.8 -0.3V
The importation of high-voltage protection: 18 -0.5V DC
Resume the importation of high-pressure point: 17 -0.5V
Enter Fanjie protection: Input is negative to the anti-automatic protection

OUTPUT
Rated output voltage: 85V AC (60~160V AC)
Rated power output: 35 -1W
Output frequency: 400 -10 Hz
Output waveform: Square
Transient voltage start.: >=23KV
Output short-circuit protection: Short-circuit, 0.2 seconds automatically stop work
Open output protection: When open, 1 - 0.2 seconds to stop work
Rated efficiency:? >86%
Row start Repeated consecutive start, power normal work
Applicable temperature range: -40C~ 105C
Waterproof, earthquake, the salt spray test: Work
Specifications LXWXH: 78X55X13.5mm
