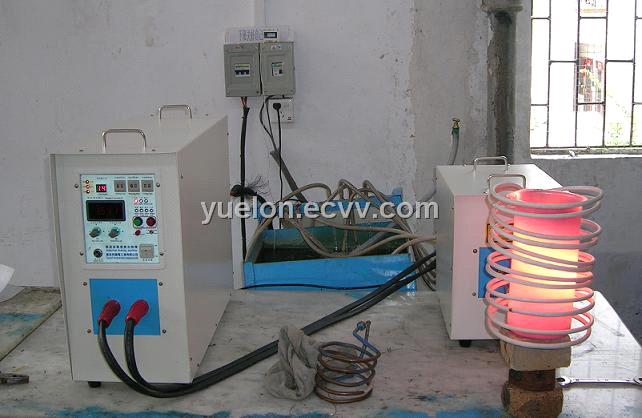

Induction Heat Treating Machine (HF-25ABD)

Detailed Product Description

Specifications:

1, Maximum input power: 25KW

2, Oscilating frequency: 30-80KHZ

3, Input voltage: 380V, three phase, 50 or 60HZ

4, cooling water: 0. 2Mpa, 6L/min , Water temperature: < 40oC

5, duty cycle: 100%

6, Timer of the HF-25ABD model: heat time, retain time, cool time: 1-99second

7, cable length of the separated model: 2meters

8, weight and size

Main characteristics:

1, IGBT module and inverting technologies of second generation been used; higher reliability an lower maintenance cost

2, 100% duty cycle, continuous working is allowed at maximum power output.

3, Constant current or constant power status can be selected accordingly to achieve higher heating efficiency.

4, Display of heating power and heating current and oscillating frequency;

5, Simple to install, installation can be done by unprofessional person very easily;

6, Light weight, 50-70KG only;

7, Advantages of the model with timer: the power and the operating time of the heating period and

the retain period can be preset respectively, to realize a simple heating curve, thie model is suggested

to use for batch production to improve the repeatability.

8, The separated models are designed to fit the dirty surrounding of some cases.

Place of Origin:	Zhejiang in China
Model No:	HF-25ABD
Other Price Terms:	;
Payment Terms:	T/T(Bank Transfer),Western Union,PayPal,
Package:	;
