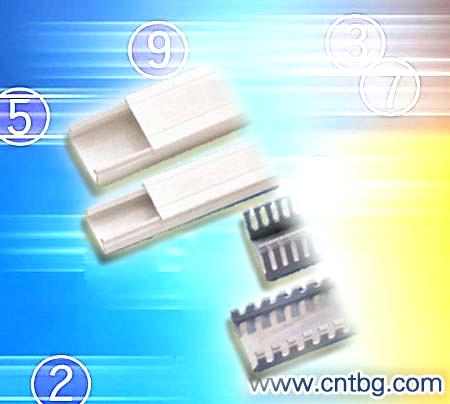

Wiring duct
*Material: made from PVC (gray), good insulation and heat-resisting up to 85℃
*Struction: up of duct bottom and lid, with two out-holes designs at the bottom.
*Size of PVC Trunk Closed type and opened type:
Height*Width:
1) 20*15, 20*20, 20*25
2) 30*15, 30*20, 30*25, 30*30, 30*35, 30*40, 30*50
3) 35*25, 35*30, 35*35, 35*40
4) 40*25, 40*30, 40*40, 40*50
5) 45*45
6) 50*20, 50*25, 50*30, 50*35, 50*40, 50*45, 50*50, 50*55, 50*60, 50*80, 50*100
7) 60*25, 60*35, 60*45, 60*50, 60*55, 60*60, 60*100
8) 80*35, 80*45, 80*50, 80*55, 80*60, 80*80, 80*100
9) 100*80, 10*100
*White installation trunk:
Height*Width:
1) 10*15, 10*20, 10*25
2) 15*15, 15*20, 15*25, 15*35
3) 20*30, 20*35, 20*50
4) 25*40
5) 30*50, 30*60, 30*80, 30*100
6) 50*80, 50*100
7) 80*100, 100*100
*Packing: 2M/ pcs or 1M/ pcs
Round type Wiring duct
*Material: very impactful, rigid, self-extinguishing P.V.C
*Service temperature: 85.
*Backed with high quality double sided tape for permanent stick.good for floor
*Wiring to facilitate trolley pass and to avoid trip.
Specification:
*Item No.: RTD-1, RTD-2, RTD-3, RTD-4, RTD-5, RTD-6
*W: 24, 31.7, 39.2, 52, 63, 70
*H: 8, 8.5, 11.0, 11.3, 12.5, 13.2
*L: 1m
*Color: white, grey and green
| Place of Origin: | Zhejiang in China |
| Model No: | RTD |
| Brand Name: | BGO |
| Payment Terms: | L/C,T/T(Bank Transfer), |
| Delivery Time: | 30-40 days |
