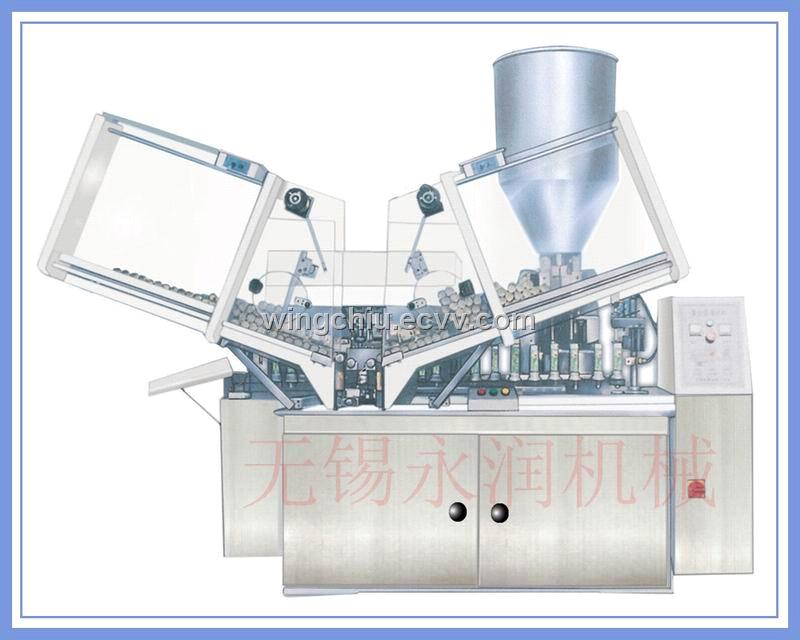

Filling and Sealing Machine for Compounding/Plastic Tubes

The machine is adequate for automatically filling and sealing compounding/plastic tubes of tooth paste, shoeshine, cosmetics, and medicine food and so on. It adopts imported heater and flow meter, featuring rapid and stable heating. Having stainless steel filling pump, this machine can fill the tubes with accurate quantity and fast sealing. It can be connected with auto packing machine, forming a production line for filling, sealing and packing various tubes or used as an individual machine.

1. Advanced heating system

2. Stainless steel filling pump with high accuracy

3. Accurate location of tube

4. Printing code at the end of the tube automatically



1. tube diameter:  φ16-φ35 mm

2. location accuracy of tube:  ±1.5 mm

3. quantity accuracy of filling:  ±0.5 g

4. production speed:  80 tubes/min

5. power:  9 kw

6. net weight:  1800 kg

7. dimensions:  2140×1000×2100 (mm)
