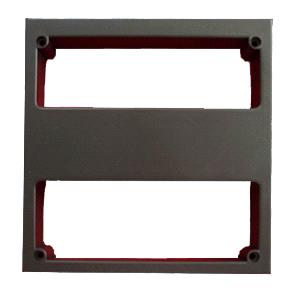

It's a high performance, lower price long range 125 KHZ RFID reader, reader distance up to 90cm, widely used for RFID Radio Frequency Identification system and project, such as Automated parking management system, Personal identification, Access controller, Production Access control, etc.
Technical Specification:
1. Working signal format: Weigand 26, ABA, RS232, RS485
2. Reader Card speed: <0. 2/S
3. Sensing distance: 0-90CM *
4. Read card frequency: 125KHz
5. Temperature Operating: -25o C-75o C
6. Operating Humidity: 10-90%
7. Inside Antena: Have
8. Embedded speakers: Buzzer
9. Working vltage: DC 12V
10. Working Current: 70mA
11. Networking way: Wiegand 26bits/ABA standard format output
12. Read range: 70~90cm
13. Device color: Black
14. Size: (L)235mm, (W)240mm, (H)35mm
15. Packing Box Size: 28. 5*26. 5*6. 5 inch
16. Unit Device Weight: 1. 5kg; Unit Packing Box Weight: 1. 8kg.
Standard Accessories:
1.Long ranger reader machine 1pc
2.Certified sheet 1
3.Warranty Card 1
4.Instruction Sheet and connect sheet 1
5.Packing Box 1, Fix Screwdriver 4pc
| Place of Origin: | Guangdong in China |
| Model No: | CS100 |
| Payment Terms: | T/T(Bank Transfer),Western Union,PayPal, |
| Minimum Order: | Set/Sets 10 |
| Delivery Time: | 5 days |
