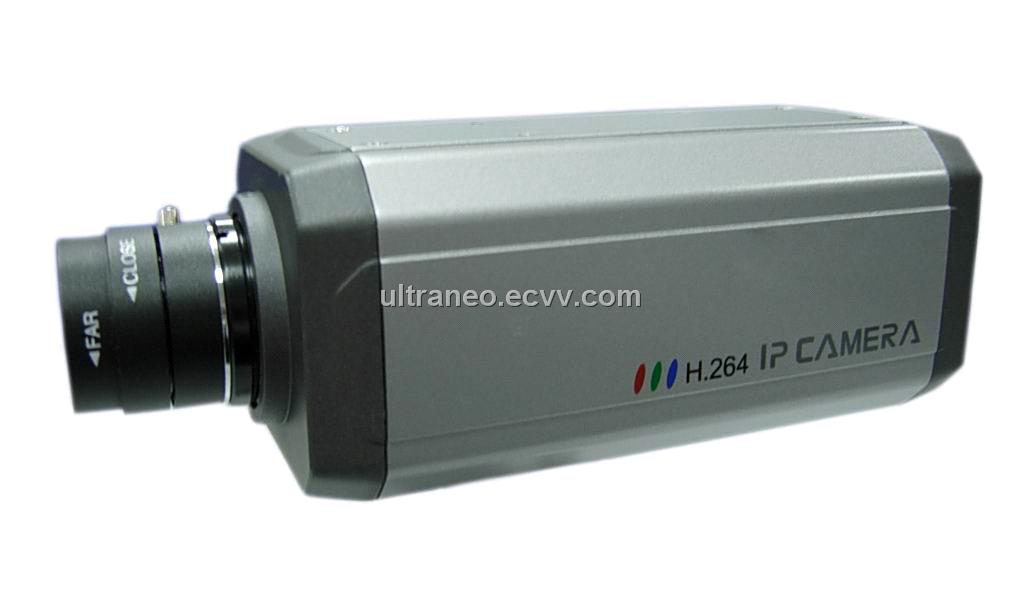

IP Camera (U2S-IP415E)

Prev Product

Detailed Product Description

Model No.	U2S-IP415E
CCD Type	SONY1/3"CCD
Scanning System	PAL/NTSC
Minimum Illumination	0.8LUX
S/N Ratio	≥48dB
AGC	Auto
White Balance	Auto
Backlight Compensation	Auto
Exposure Mode	EE
Electronic Shutter	1/50(1/60) - 1/100000 sec
Gamma Correction	0.45
Sync.System	Internal Synchronization
Lens	C/CS
Main processor & Image format	Hi3510 32Bit ARM926+DSP/H.264
Video Input	1CH complex video, PAL/NTSC, 1CH CCD/CMOS sensor digital video port
Video Format	H.264 Bsdeline profile·Leve1 2.2
Video Resolution	PAL: 352H×288(CIF), 704H×288(2CIF), 704H×576(D1) NTSC: 352H×240(CIF), 704H×240(2CIF), 704H×480(D1)
Adjustable Video Data	Brightness, hue, contrast, saturation and image quality
Code stream format	Pure video code stream or audio complex stream
Video Frame Rate	PAL: 1-25frames/sec, NTSC: 1-30frames/sec
Video Compression Rate	16Kbit/s ~ 8Mbit/s
Video Output	1CH complex video output
Audio Format	G.726
Audio Output	1CH output
Audio Talk-back Input	1CH Microphone input
Protocol	TCP/UDP/IP/HTTP/FIP/SMTP/DHCP/DNS/ARP/1CMP/POP3/NTP/ipse/UpnP /RTP/RTCP
System Port	10Bsse-T/100Bse-TX Enternet port, 1 RS485 port/1 RS232 port, WiFi port(802.11b/g wireless internet), SD card port, USB port
Alarm Input	1CH on/off input, support NO (always on) or NC (always off)
Alarm Output	1CH on/off output, 120VCA 1A/240VDC 1A
Power Supply	DC12V 1A
Max. Power Consumption	<1.2W
Operation Humidity	10 ~ 85%
Operation System	Microsoft Windows 98/ME/2000/2003/XP Microsoft Internet Explorer 5.x or above
Operation Temperature	-10℃ ~ +55℃

Place of Origin:	Guangdong in China
Model No:	U2S-IP415E
Brand Name:	U2S
Payment Terms:	L/C,T/T(Bank Transfer),Western Union,
