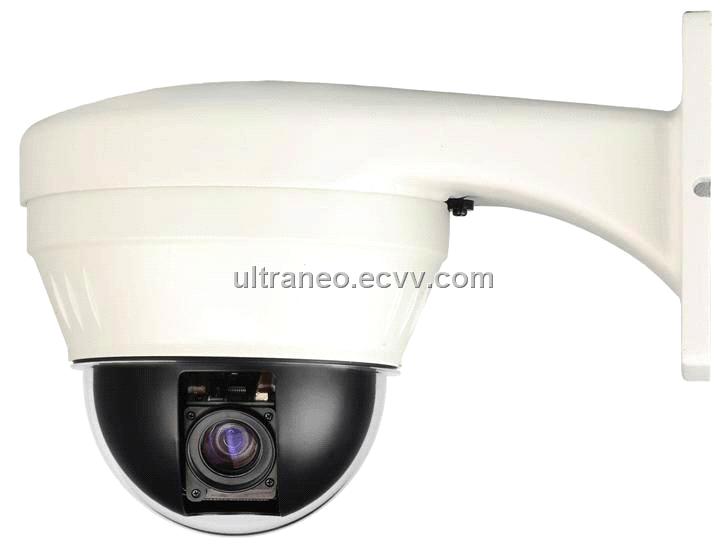

Dome Camera (U2S-SP9407)

Detailed Product Description

Model	U2S-SP9407
Sync System	625 lines, 50 field/S,2:1 Interfacing
Imaging sensor	1/4" Sony Super HAD CCD
Effective Image (H X V)	380,000
Resolution	500 lines / 570lines (optional)
Video output	Multiple video output, 1.0±0.2Vp-p
S / N	≥50 db
Illumination	Color 0.5 Lux
White Balance	Automatic / manual
Gain Control	Auto Gain control
Zoom	100 times (10x optical X 10xdigital)
Zoom Length	3.8mm/38mm
Digital shutter	Auto 1/50 – 1/120, 000 S continuously / manual
Pan rotation range	360 ° continuous rotation
Tilt rotation range	0 ~ 90 ° with auto-flip
Pan speed	0.5° ~ 160°/ s
Tilt speed	0.5° ~ 90° / s
Presets	128
Decoders	Built - in
Baud rate (RS485/422)	2400/4800/9600/19200 bps
ID range	1～254
Operation Temperature	- 10°～50°
Environmental Humidity	0 ~ 95％ (non-condensing)
Protection grade	IP66 ,1500W Lightning proof and surge proof, all-day defend cover
Power consumption (W)	≤ 9 W
Dimensions (H X D)	120 X 160 (mm)
Communication	RS485/422 Bus
Protocol	Built-in multi-protocol (Pelco-P/D)
Net weight	1.2 (kg)
Gross Weight	1.7(kg)

Place of Origin:	Guangdong in China
Model No:	U2S-SP9407
Brand Name:	U2S
Payment Terms:	L/C,T/T(Bank Transfer),Western Union,
