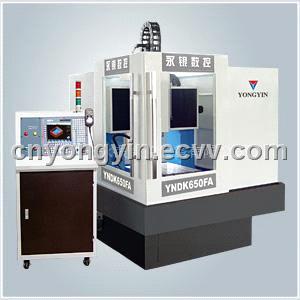

FA650 C CNC Milling machine

Detailed Product Description

Main Technical Parameter:
Control system FAGOR8055iA
Worktable 530-650mm
Guide trail Taiwan PMI
Distance 650*550*260mm
Homemade principal axis/ rotating speed3000-18000 worktable structure T shape
Groove Lead screw precision 0.008
Gantry width 700mm
Maximum power consumption 7KW
Maximum carrying capacity 350KG
Lead screw lubrication automatic
Height 420mm
Principal axis cooling/water cooling
Maximum feeding speed 10m/min
Machine tool net weight 3500KG
Power source three-phase 380V
Optional: Automatic main axle constant temperature refrigerator
Maximum cutting speed 10m/min
Principal axis power 4KW height 2000mm
Collet φ3 φ4 φ6 φ8 φ10
Japanese automatic tool setting gauge METROL
Distance from the principal axis end to the worktable 60-320mm
Area 2000*1600mm
The above location parameter is referred to national standards, us ing British RENISHAW dual-frequency laser interferometer and the ball bar instrument to measure . positioning precision 0.01/300mm all over the world and appreciated by purchasers.
We accept customized orders of engraving machines to meet your specific requirements. If you are interested in any of our series of engraving machines, or need any related items, please contact us with details of your specific
Repeated positioning precision 0.005mm
All the engraving machines we provide are professionally designed and skillfully manufactured. Our engraving machines are selling orders.

Place of Origin:	Zhejiang in China
Model No:	FA650 C
Brand Name:	Yong Yin
FOB Price:	0000-10000 USD NINGBO
Payment Terms:	T/T(Bank Transfer),
Delivery Time:	30
