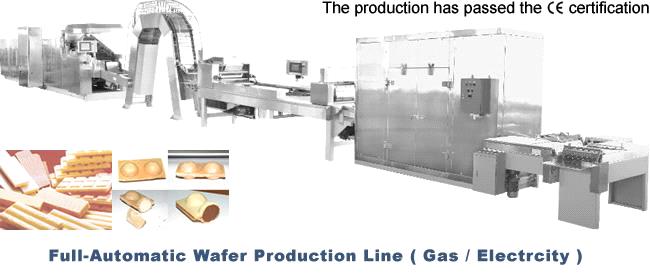

Automatic Wafer Production Line

Detailed Product Description

Product Origin:	China
Detailed Product Description:
Brief Introduction to Full-automatic 39-model Gas Wafer Production Line of Coral Foodstuff Machine Co., Ltd. Full-automatic wafer production line is designed and manufactured according to the facts of domestic biscuit manufacturing industry and absorbing the most well-known wafer production lines of many overseas manufactories, which features reliable performance, compact structure, small occupation, high yield, lower energy consumption, convenient maintenance, simple operation and non-environmental pollution. All motor and electrical machine obtain inportant famous brand machine. Equipments composing full-automatic gas wafer production line: 1 Gas tunnel baking machine----one set 2 JP?connecting machine----one set 3 LP?cooling machine----one set 4 TW?cream spreading----machine one set 5 S wafer conveyor----one set 6 J?cutting machine----one set 7 D?pulping machine----one set 8 WG?cream mixer----one set 9 F?smashing machine----one set 10 cold cabinet----one set For the deployment of the production line, please refer the plane and stereo configuration diagram of full-automatic wafer production line. As the most important equipment of full-automatic wafer production line, tunnel gas baking machine has extraordinarily outstanding performances with the main characters as follows: 1. Unanimous heat colors of wafer block. Thanks to the scientific selection of heating components, superior material selection for baking plate and reasonable die carrier structure, the heat colors of the center and periphery of the wafer block having been baked are unanimous. 2. High rate of certified products with finished product rate of not less than 98%. Because of uniform heating and unanimous heat colors, the demoulding rate of biscuit is high with improving rate of certified products accordingly. 3. Small cubage. As a result of reasonable layout, the body length of the baking oven is only 2/3 of the same type of product, which saves space greatly. 1. Production capacity: daily output of R39 model wafer production machine is 3.5tons. The material ratio between wafer block and sandwich is 1:1. 2 . Parameters of whole production line: a Electric power consumption of whole production line: About 25KW (380V, 50HZ) b Compressed air: About 0.9 M3/MIN c Size of wafer: 460mm * 320mm d Effective cutting size of wafer block: 455mm * 315mm e Baking time of wafer block: 90 seconds f External dimensions of whole line: 19m * 2m * 2.4m (L * W * H) 3 . Gross weight: about 17 T 4 . It is Ok for only 4 workers to operate one production line.
