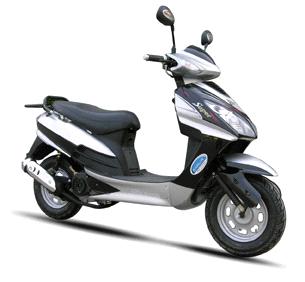

50cc Scooter (BD50QT-4-VII)

* BD50QT-4-VII, 50cc gas scooter

* Dimension (L*W*H)mm): 1680*460*860

* Wheel base (mm): 1300

* Min. Ground Clearance (mm): 110

* Dry Weght: 90kg

* Maximum weight capacity: 75kg

* Engine Type: Single-cylinder, air-cooled, four-stroke

* Engine model: 139QMB

* Bore*Stroke: 39. 0mm*41. 5mm

* Displacement: 49mL

* Maximum Power: 2. 3kW/rpm(8000+400 r/min)

* Maximum Torque: 2. 9N. M/rpm(6000-350r/min)

* Lubrication: Pressure/splash

* Start: Electric start/Kick start

* Ignition: C. D. I

* Max. Speed (km/h): 45km/h

* Fuel tank Maximum capacity: 5L

* Economical Fuel Consumption (l/100km): 1. 9L /100km

* Front Type Size and Air Pressure: 3. 50-10/225KPa

* Rear Type Size and Air Pressure: 3. 50-10/250Kpa

* Front brake type: Drum type

* Rear brake type: Drum type

* 40'HQ: 105 units
